Exhaust Tips

[Rynil2000]

Just to confirm for those who have Borla exhaust we want the 51mm option with the 105/ 75 outlet correct?

Yep - that’s the exact size I ordered and installed. No problems. Just had to drop the mufflers and remove the stock tips, reinstall mufflers, install new tips, adjust for fit, and tighten it all down. About an hour of work on a cold car (I don’t recommend wrestling with hot pipes).



[SKStinger]

So I need 51mm tip? On srock exhausr

51mm inlet for stock exhaust.



[Koreandude]

Finally got time to install my exhaust and the Akrapovic tips ! with the MBRP exhaust I went with 63x89mm – it does require a little bit of trimming the diffuser OEM holes however not that much, there VERY snug in there and make a whole lot of a difference for the drone.

I think they look GREAT makes the car look so much meaner now !

View attachment 30056 View attachment 30057 View attachment 30058 View attachment 30059 View attachment 30060 View attachment 30061 View attachment 30062

How "tight" were the 63mm tips to slide over the MBRP exhaust? I just ordered these tips but in 66mm x 89mm thinking 63mm would be too small since it technically measures under 2.5".



[GreySpector]

How "tight" were the 63mm tips to slide over the MBRP exhaust? I just ordered these tips but in 66mm x 89mm thinking 63mm would be too small since it technically measures under 2.5".

63mm fits perfect, you'll have to fill the gap on your 66mm



[Drudge]

So just to clarify the tips are not only for aesthetic purposes but they help eliminate some interior cabin drone? And if so how much drone can a set of tips help eliminate est. 5%, 25%, 50% et.?



[Rynil2000]

So just to clarify the tips are not only for aesthetic purposes but they help eliminate some interior cabin drone? And if so how much drone can a set of tips help eliminate est. 5%, 25%, 50% et.?

Exactly. More or less, it helps push the exhaust sound waves out past the back end of the car instead of having some bounce back underneath and resonate in the interior due to the disconnect between the exhaust pipes and the stock tips in the bumper.
I’m not sure of an exact percentage in drone reduction a) because drone is subjective b) I haven’t remeasured with the decibel meter.
What I can say, in my opinion, is that it drastically improved the interior noise level coming from the Borla cat-back such that I can keep the radio volume on 3-4 and hear every word clearly. Low RPM drone in that 1.25-2k band (Highway cruising, around town in comfort mode) is much better, also. I feel that it’s brought the car back to near stock interior comfort levels as a DD, but still lets you (and definitely those behind you) hear what you paid for.



[Drudge]

Exactly. More or less, it helps push the exhaust sound waves out past the back end of the car instead of having some bounce back underneath and resonate in the interior due to the disconnect between the exhaust pipes and the stock tips in the bumper.
I’m not sure of an exact percentage in drone reduction a) because drone is subjective b) I haven’t remeasured with the decibel meter.
What I can say, in my opinion, is that it drastically improved the interior noise level coming from the Borla cat-back such that I can keep the radio volume on 3-4 and hear every word clearly. Low RPM drone in that 1.25-2k band (Highway cruising, around town in comfort mode) is much better, also. I feel that it’s brought the car back to near stock interior comfort levels as a DD, but still lets you (and definitely those behind you) hear what you paid for.

Very informative, thank you very much. I'm probably buying the Borla during the K8 sale and just wanted to make sure it makes a difference but coming from an STi with downpipes I doubt the exhaust would bother me anyway LOL



[Gtecko]

Haha yes, pretty much what this whole thread is about.
grab a coffee and read on

So just to clarify the tips are not only for aesthetic purposes but they help eliminate some interior cabin drone? And if so how much drone can a set of tips help eliminate est. 5%, 25%, 50% et.?



[Koreandude]

63mm fits perfect, you'll have to fill the gap on your 66mm

I changed the order to reflect the 63mm diameter. Thanks for the input! Those Imperial to Metric measurements can get tricky. lol.



[xot1]

Installing tips at this very moment.
It is more work than expected.



[SKStinger]

Installing tips at this very moment.
It is more work than expected.

View attachment 36173

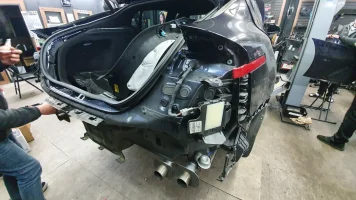

Why did they remove your bumper? It’s easier to just drop the rear part of the exhaust.



[Gtecko]

Installing tips at this very moment.
It is more work than expected.

wow ... surely this is not JUST for the exhaust tips.... WAY overkill



[Rynil2000]

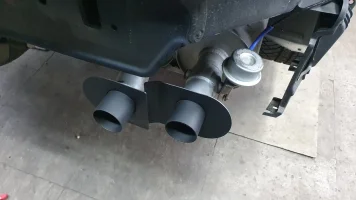

I’m thinking there must be something else going on here. What’s this little guy; some type of vacuum actuator for active exhaust?

Could explain the bumper removal. IDK though.



[Gtecko]

I’m thinking there must be something else going on here. What’s this little guy; some type of vacuum actuator for active exhaust?
View attachment 36174
Could explain the bumper removal. IDK though.

good eye ! looks like EVC system... jun bl maybe (since op is in Korea)



[xot1]

Yes its an EVC catback.

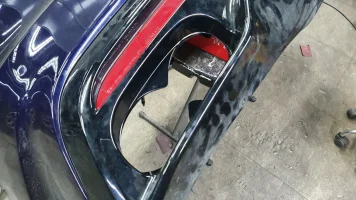

We removed the bumper to do the trimming, and we also painted the original muffler tips in black to be more stealth when looking through the trimmed bumper.



[xot1]

good eye ! looks like EVC system... jun bl maybe (since op is in Korea)

Bingo



[Rynil2000]

Yes its an EVC catback.
We removed the bumper to do the trimming, and we also painted the original muffler tips in black to be more stealth when looking through the trimmed bumper.

View attachment 36175
View attachment 36176
View attachment 36178

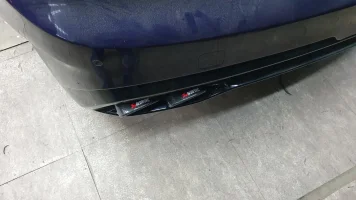

Wow. Clean trim work
What size tips did you go with?



[xot1]

75x105
but I think I should have gone for a smaller size
I get a sort of rattle at idling 620RPM, I think the tips are hitting the bumper at that engine speed.



[xot1]

I must warm the community:
Tips may reduce the drone, but they change the note of the exhaust, thing that I didn't really expect.
To be honest the exhaust sounded better before doing the tips, both valve opened and closed.
Now it sounds different and louder on the outside, quieter inside (not speaking of the rattle because it is probably an easy fix).
So if I could speak to my past self before ordering the tips (or to anyone in a similar situation) I would say: Only do it if you can't live with the drone!
In conclusion I am a little bit disappointed right now but I couldn't do much testing, so I will update my opinion after more driving.



[niko]

I must warm the community:
Tips may reduce the drone, but they change the note of the exhaust, thing that I didn't really expect.
To be honest the exhaust sounded better before doing the tips, both valve opened and closed.
Now it sounds different and louder on the outside, quieter inside (not speaking of the rattle because it is probably an easy fix).
So if I could speak to my past self before ordering the tips (or to anyone in a similar situation) I would say: Only do it if you can't live with the drone!
In conclusion I am a little bit disappointed right now but I couldn't do much testing, so I will update my opinion after more driving.

Damn I wish u would have installed them 2 days ago cuz that’s when I bought some. Oh well I’ll guess I’ll just sell them
