Access to "engineering mode"

Cool video Vinny. Can you upload high res photos of the PCB?

Sure is interesting to see what's physically inside it - however the skill required to actually reverse engineer & hack the software on it would not be a trivial task.

Would make sense that the boards are fairly universal between various Kia/Hyundai models granted there's that resistor selection to present the actual hardware config (to software)

Can you see any connector/pinout for serial console access?

is there any way to replace the firmware for the non navi unit? or enable hidden functions? can you plz update us.

______________________________
Has anyone found the code for us aussies that lets us access proper engineering mode?

From Australia. No update from me other than the last annual map and system update was in May 2019 (using Hyundai/Kai Smart Update Manager) and this broke the previous codes that allowed ability to side load android apps.
So next annual map update and possible system update should have been out in May 2020, but nothing yet.

All the mods and upgrades for your Stinger you could ever ask for. CLICK HERE!
From interior to exterior to high performance - everything you need for your Stinger awaits you...
2900 worked for my 2020 GT but i'm in the US. Worth a try though.

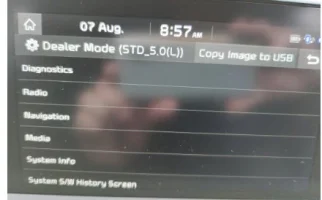

using code 2400 after accessing using this method below, gets to Dealer Mode on latest version available in Australia for Stinger



Attachments

  • dealer 1.webp
    dealer 1.webp
    11.7 KB · Views: 60
Last edited:
Iantoday said:
using code 2400 after accessing using this method below, gets to Dealer Mode on latest version available in Australia for Stinger

Click to expand...
Nice find!

To summarize the video:
1. Go to Settings / About (version numbers will be displayed)
2. Use the steering wheel buttons - set volume to 7
3. Press the tuner dial button on the dash
4. Use the steering wheel buttons - set volume to 3
5. Press the tuner dial button on the dash
6. Use the steering wheel buttons - set volume to 1
7. Press the tuner dial button on the dash
8. Enter password 2400

Nothing exciting inside apart from some diagnostic readings of various sensors used by the infotainment system.

..

Last edited:
______________________________
All the mods and upgrades for your Stinger you could ever ask for. CLICK HERE!
From interior to exterior to high performance - everything you need for your Stinger awaits you...
Driver said:
Nice find!

To summarize the video:
1. Go to Settings / About (version numbers will be displayed)
2. Use the steering wheel buttons - set volume to 7
3. Press the tuner dial button on the dash
4. Use the steering wheel buttons - set volume to 3
5. Press the tuner dial button on the dash
6. Use the steering wheel buttons - set volume to 1
7. Press the tuner dial button on the dash
8. Enter password 2400

Nothing exciting inside apart from some diagnostic readings of various sensors used by the infotainment system.
Click to expand...
There’s a part 2 to that video on YouTube that goes to engineering mode after entering dealer mode

Coast GT said:
There’s a part 2 to that video on YouTube that goes to engineering mode after entering dealer mode
Click to expand...
part 2 of video - does not work on Australian Stinger. But following does ( but not full access like in past, so cannot sideload apps) "code 2998 after access settings screen > about menu. Click the "map" text 4 times; then click the map version number text.

Found a list of multiple ways to get into Kia Engineering mode, Here's a copy from the page (would link but not allowed because i'm too new.) Hopefully one of them works for you guys in Aus.


PROCEDURE MAY VARY FROM CAR TO CAR, NOT WORKING ON ALL SYSTEMS. DO NOT CHANGE ANY HIDDEN SETTING, DO NOT USE IT WHILE DRIVING. USE AT YOUR OWN RISK AND COST!


Engineering Mode (CTS Test, ADB Connect Type, Android Setting, All Applications)


  1. Press the Setup button or choose All menus -> Settings
  2. Choose Screensaver
  3. Tap below Digital – Analogue – None options from left to right and back 7 times in total (tap below Digital, Analogue, None, Analogue, Digital, Analogue, None)
  4. Password is the current time or 2400
  5. Choose Send

Engineering Mode (System, Navigation, Reception, …)


  1. Press the Setup button or choose All menus -> Settings
  2. Choose System Info
  3. Tap 4 times on „Firmware“ or „Map“ and tap once on its version on the same line
  4. Password is 1111 or 2998
  5. Choose Send
  6. Choose Reception -> RDS -> RDS State (TestMode); choose DAB -> DAB State (DAB Engineering Mode)

  • OR

  1. Press the Setup button or choose All menus -> Settings
  2. Choose Screensaver
  3. Tap below Digital – Analogue – None options from left to right and back 7 times in total (tap below Digital, Analogue, None, Analogue, Digital, Analogue, None)
  4. Password is the current time or 2400
  5. Choose Send
  6. Choose All Applications
  7. Choose 3rd Engineering Mode from the top (not the first Engineering Mode, not the DAB Engineering Mode)

  • OR

  1. Press the Setup button or Choose All menus -> Settings
  2. Choose System Info
  3. Press the left knob (volume) to turn off the AV
  4. In the dark part of the screen tap 4 times in the right bottom and once in the left bottom

  • OR

  1. Press the Setup button or choose All menus -> Settings
  2. Choose System info to see last 6 digits of the Software version (e.g. 191209)
  3. Choose Update
  4. Imagine the dark part of the screen is a phone dial with buttons 1 to 9 and the button 0 is in the left bottom of the whole screen
  5. On the imaginary dial enter last 6 digits of the Software version (e.g. 191209)
  6. Password is the current time + last 4 digits of the Software version (e.g. current time is 15:48 -> enter 15481209)
  7. Choose Send

Engineering Mode (All in One Version, …)


  1. Press the Setup button or choose All menus -> Settings
  2. Choose System Info
  3. Tap 5 times left from the button Update and tap once right from the button Update or choose Storage and in the dark part of the screen tap 5 times in the left bottom and once in the right bottom
  4. Password is 2900
  5. Choose OK
  6. Choose Module Info
  7. Choose FM -> Launch FM Engineering Mode; choose AM -> Launch AM Engineering Mode; choose DAB -> Launch DAB Engineering Mode

EngineerMode (System, Diagnostics, Location, Radio, Voice Recognition)


  1. Press the Setup button or choose All menus -> Settings
  2. Choose General -> System info -> Memory
  3. In the dark part of the screen perform 6 taps in a quick sequence: Tap once below „Available…“ and the orange/grey line, tap 2 times below „Used for…“ and the orange/grey line, tap once above the orange/grey line between „Used for…“ and „Available…“, tap once below the middle of the orange/grey line and tap once below „Available…“ and the orange/grey line
  4. Password is 1032580 + minutes of current time (e.g. current time is 15:48 -> input 103258048)
  5. Choose OK

Dealer Mode (Diagnostics, Location, Media, Radio, Smart Pure Air Version Info/Update)


  1. Press the Setup button or choose All menus -> Settings
  2. Choose System Info
  3. In a quick sequence set volume using left knob to level 0, then to level 7 and press the right knob, then set volume to level 3 and press the right knob, then set volume to level 1 and press the right knob
  4. Password is 2400
  5. Choose Send

  • OR

  1. Press the Setup button or choose All menus -> Settings
  2. Choose General -> System info -> Version info/Update
  3. In a quick sequence set volume to level 7 and tap on the word „Update“ in the title Version info/Update, then set volume to level 3 and tap on the word „Update“ in the title Version info/Update, then set volume to level 1 and tap on the word „Update“ in the title Version info/Update
  4. Password is 2400
  5. Choose OK

DAB 1 – Overview (Freq, …)


  1. Go to the Radio mode
  2. Tap 5 times in the top right corner, under the Back icon

Dumpfile


  1. Press and hold Radio button for 15 seconds

Testmode on older systems – GEN 1.x, GEN 2.0


  1. Go to the Radio mode
  2. Press and hold the Setup button until a screen with device information appears
  3. Touch and hold the screen in the middle until „Testmode“ screen appears
  4. Choose OK
  5. Password is 123456
  6. Choose OK

RogueIV said:
Found a list of multiple ways to get into Kia Engineering mode, Here's a copy from the page (would link but not allowed because i'm too new.) Hopefully one of them works for you guys in Aus.


PROCEDURE MAY VARY FROM CAR TO CAR, NOT WORKING ON ALL SYSTEMS. DO NOT CHANGE ANY HIDDEN SETTING, DO NOT USE IT WHILE DRIVING. USE AT YOUR OWN RISK AND COST!


Engineering Mode (CTS Test, ADB Connect Type, Android Setting, All Applications)


  1. Press the Setup button or choose All menus -> Settings
  2. Choose Screensaver
  3. Tap below Digital – Analogue – None options from left to right and back 7 times in total (tap below Digital, Analogue, None, Analogue, Digital, Analogue, None)
  4. Password is the current time or 2400
  5. Choose Send

Engineering Mode (System, Navigation, Reception, …)


  1. Press the Setup button or choose All menus -> Settings
  2. Choose System Info
  3. Tap 4 times on „Firmware“ or „Map“ and tap once on its version on the same line
  4. Password is 1111 or 2998
  5. Choose Send
  6. Choose Reception -> RDS -> RDS State (TestMode); choose DAB -> DAB State (DAB Engineering Mode)

  • OR

  1. Press the Setup button or choose All menus -> Settings
  2. Choose Screensaver
  3. Tap below Digital – Analogue – None options from left to right and back 7 times in total (tap below Digital, Analogue, None, Analogue, Digital, Analogue, None)
  4. Password is the current time or 2400
  5. Choose Send
  6. Choose All Applications
  7. Choose 3rd Engineering Mode from the top (not the first Engineering Mode, not the DAB Engineering Mode)

  • OR

  1. Press the Setup button or Choose All menus -> Settings
  2. Choose System Info
  3. Press the left knob (volume) to turn off the AV
  4. In the dark part of the screen tap 4 times in the right bottom and once in the left bottom

  • OR

  1. Press the Setup button or choose All menus -> Settings
  2. Choose System info to see last 6 digits of the Software version (e.g. 191209)
  3. Choose Update
  4. Imagine the dark part of the screen is a phone dial with buttons 1 to 9 and the button 0 is in the left bottom of the whole screen
  5. On the imaginary dial enter last 6 digits of the Software version (e.g. 191209)
  6. Password is the current time + last 4 digits of the Software version (e.g. current time is 15:48 -> enter 15481209)
  7. Choose Send

Engineering Mode (All in One Version, …)


  1. Press the Setup button or choose All menus -> Settings
  2. Choose System Info
  3. Tap 5 times left from the button Update and tap once right from the button Update or choose Storage and in the dark part of the screen tap 5 times in the left bottom and once in the right bottom
  4. Password is 2900
  5. Choose OK
  6. Choose Module Info
  7. Choose FM -> Launch FM Engineering Mode; choose AM -> Launch AM Engineering Mode; choose DAB -> Launch DAB Engineering Mode

EngineerMode (System, Diagnostics, Location, Radio, Voice Recognition)


  1. Press the Setup button or choose All menus -> Settings
  2. Choose General -> System info -> Memory
  3. In the dark part of the screen perform 6 taps in a quick sequence: Tap once below „Available…“ and the orange/grey line, tap 2 times below „Used for…“ and the orange/grey line, tap once above the orange/grey line between „Used for…“ and „Available…“, tap once below the middle of the orange/grey line and tap once below „Available…“ and the orange/grey line
  4. Password is 1032580 + minutes of current time (e.g. current time is 15:48 -> input 103258048)
  5. Choose OK

Dealer Mode (Diagnostics, Location, Media, Radio, Smart Pure Air Version Info/Update)


  1. Press the Setup button or choose All menus -> Settings
  2. Choose System Info
  3. In a quick sequence set volume using left knob to level 0, then to level 7 and press the right knob, then set volume to level 3 and press the right knob, then set volume to level 1 and press the right knob
  4. Password is 2400
  5. Choose Send

  • OR

  1. Press the Setup button or choose All menus -> Settings
  2. Choose General -> System info -> Version info/Update
  3. In a quick sequence set volume to level 7 and tap on the word „Update“ in the title Version info/Update, then set volume to level 3 and tap on the word „Update“ in the title Version info/Update, then set volume to level 1 and tap on the word „Update“ in the title Version info/Update
  4. Password is 2400
  5. Choose OK

DAB 1 – Overview (Freq, …)


  1. Go to the Radio mode
  2. Tap 5 times in the top right corner, under the Back icon

Dumpfile


  1. Press and hold Radio button for 15 seconds

Testmode on older systems – GEN 1.x, GEN 2.0


  1. Go to the Radio mode
  2. Press and hold the Setup button until a screen with device information appears
  3. Touch and hold the screen in the middle until „Testmode“ screen appears
  4. Choose OK
  5. Password is 123456
  6. Choose OK
Click to expand...
Great thank you, will try them all. Really appreciated

Jeff Hulbert posted a short video in one of the facebook groups last week. I did get into engineering mode on mine, but any change I made was reset to factory upon restarting the car. I wanted to get rid of that annoying battery discharge warning, and I did, but only until I restarted the car.

All the mods and upgrades for your Stinger you could ever ask for. CLICK HERE!
From interior to exterior to high performance - everything you need for your Stinger awaits you...
RogueIV said:
Found a list of multiple ways to get into Kia Engineering mode, Here's a copy from the page (would link but not allowed because i'm too new.) Hopefully one of them works for you guys in Aus.

[...]
Click to expand...

thx for this list ... unfortunately only few works for my KIA Stinger GT (2018):

Engineering Mode (CTS Test, ADB Connect Type, Android Setting, All Applications)
-> doesn't work

Engineering Mode (System, Navigation, Reception, …)
  1. Press the Setup button or choose All menus -> Settings
  2. Choose System Info
  3. Tap 4 times on „Firmware“ or „Map“ and tap once on its version on the same line
  4. Password is 1111 or 2998
  5. Choose Send
  6. Choose Reception -> RDS -> RDS State (TestMode); choose DAB -> DAB State (DAB Engineering Mode)
-> this works

Engineering Mode (All in One Version, …)
-> doesn't work

EngineerMode (System, Diagnostics, Location, Radio, Voice Recognition)
-> doesn't work

Dealer Mode (Diagnostics, Location, Media, Radio, Smart Pure Air Version Info/Update)
-> works

DAB 1 – Overview (Freq, …)
-> doesn't work

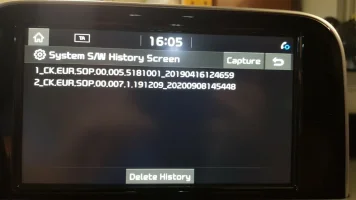

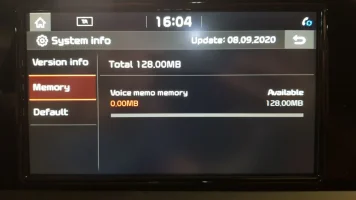

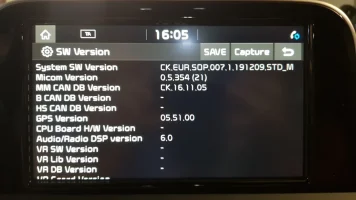

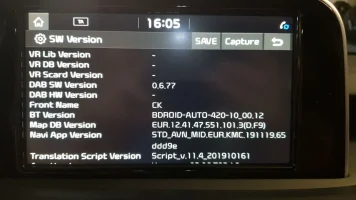

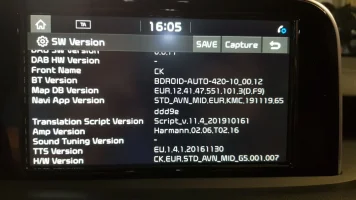

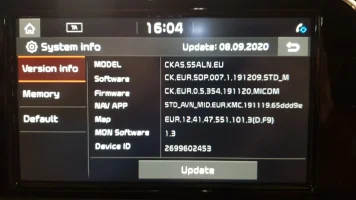

Attached/below my SW version.

20200919_160404_1.jpg20200919_160412_1.jpg20200919_160522_1.jpg20200919_160536_1.jpg20200919_160540_1.jpg20200919_160558_1.jpg

Does anyone have an idea how to get Engineering Mode in this car ?
The most interested for me is "Android Settings"

BTW: I found this helpful instruction (for those who finally get Engineering Mode) and would like to make a next step which is installation own apk :)

Last edited:
______________________________
Like you I can get into Engineering mode using
Tap 4 times on „Firmware“ or „Map“ and tap once on its version on the same line, and 2998.
But no option/ no access to Android settings to side load APKs. The software version of mine (Australian) is CK_19MY.AUS.SOP.004.1.190403.5

Did we ever find out if we can do anything useful in engineering mode?

nothing new ?
i m trying till now without success to enter in engineer mode to try to set the sensivity of parking rear sensor

All the mods and upgrades for your Stinger you could ever ask for. CLICK HERE!
From interior to exterior to high performance - everything you need for your Stinger awaits you...
You must log in or register to reply here.

Cars Connected in the Apple App Store Cars Connected in the Android App Store
Great resources:
- VIN Check
- Clean your leather!
- Safe Emergency Charging
- Windshield Repair Kit
- Chemical Guys HydroSpeed Ceramic Quick Detailer
- Chemical Guys HydroCharge High-Gloss Hydrophobic SI02 Ceramic Spray Coating
- Get a dash cam!
- Auto Buyers Market
Protect your Stinger from code scanners
Back
Top
