3.3TT P061B code jb4 map 1 - limp mode

[windz]

installed jb4
Map 1
91 octane
densos .022

P061B code - no issues prior to install

Test drive 10min ran good first day. Next day long drive about 30 min code came up car limp mode again. deleted code, ran normally, bout 30min in again code came back and car was in limp mode again.

Ive attached a log of my drive (you can see the point it switched to map 0. i also manually switched). So i double checked all the wiring. i DID NOTICE the driver side fuel wire positap was slightly loose (Positapped to fuel adapters not factory wiring). They were definitely tight when i first installed. (maybe came loose from heat)

My question is, is it possible for this wire being slightly loose cause this code and stall/limp mode?

Any help is much appreciated

Thank you



[Terry@BMS]

It's possible. After fixing are you able to do a normal full throttle map1 log?



[windz]

It's possible. After fixing are you able to do a normal full throttle map1 log?

Jeez thank you for the extremely fast response. I fixed it and will do a run shortly. Are you able to see anything out of the ordinary from the log I posted previously?



[Terry@BMS]

No since the run is basically in limp mode so it's not making normal boost.



[Scorpion132]

I have the same problem ! Its me Philippe from facebook...
Map 1
Denso 0.022
From Canada. The cold weather can make this code ?



[Terry@BMS]

I have the same problem ! Its me Philippe from facebook...
Map 1
Denso 0.022
From Canada. The cold weather can make this code ?

Hmm that is also possible the trims and everything in the log look fine to me. Are you able to recreate it easily on map1? What about on map0?



[Scorpion132]

I installed JB4 yesterday. i Drove about 20 min without problem. Today I drove about 30 min and the check engine light on P061B. Limp mode. Delete code and go to my home. About 30 fahrenheint.



[Terry@BMS]

Interesting both are new installs and in Canada... I'd suggest both updating to v15 firmware also just to rule out any firmware issue.



[Scorpion132]

Hmm that is also possible the trims and everything in the log look fine to me. Are you able to recreate it easily on map1? What about on map0?

I dont try map 0 again



[windz]

Interesting both are new installs and in Canada... I'd suggest both updating to v15 firmware also just to rule out any firmware issue.

Yeah that's very weird we both did installs pretty much same time. I will update firmware now to v15 and go for a run on map 1 and map 0



[Scorpion132]

Interesting both are new installs and in Canada... I'd suggest both updating to v15 firmware also just to rule out any firmware issue.

Now I use v14



[Scorpion132]

Yeah that's very weird we both did installs pretty much same time. I will update firmware now to v15 and go for a run on map 1 and map 0

Give me the result pls



[Scorpion132]

Yeah that's very weird we both did installs pretty much same time. I will update firmware now to v15 and go for a run on map 1 and map 0

Wich version v13 or v14 when check engine light on



[windz]

deleted



[windz]

Wich version v13 or v14 when check engine light on

v14 what version were you on?



[Scorpion132]

v14 what version were you on?

V14



[Scorpion132]

Interesting both are new installs and in Canada... I'd suggest both updating to v15 firmware also just to rule out any firmware issue.

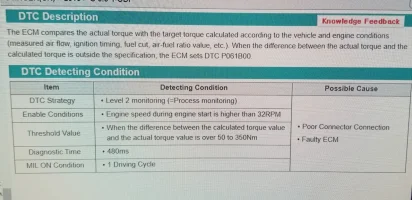

P061B description



[Scorpion132]

Interesting both are new installs and in Canada... I'd suggest both updating to v15 firmware also just to rule out any firmware issue.

Yesterday the check engine light comed when I maked normal cruising in comfort mode, after about 30 min. But I dont have log of this. On v14. today i will try v15.
if check engine come against. do you suggest try v13 ?



[Terry@BMS]

Can't hurt but going back to v13 not likely to help. Something else to test would be disabling the fuel control under options.



[Scorpion132]

Can't hurt but going back to v13 not likely to help. Something else to test would be disabling the fuel control under options.

how to do
