Drag/Acceleration Mods to improve ¼ mile times and unofficial track thread

Discussion in 'Kia Stinger Motorsports' started by Angel, May 17, 2019.

  1. KLR STINGER

    KLR STINGER Canada Active Member

    457
    325
    68
    EwG control please. Remember is fully catless guys still have issue in cold weather that would greatly benefit from direct wgdc support!

    • Agree Agree x 1
  2. StungBlueGT2

    StungBlueGT2 United States 1000 Posts Club! Sustaining Member

    1,319
    758
    118
    Location:
    PB Florida, U.S.A.
    Nothing special and pretty sure Kato and almost everyone else uses the same simple method. Turn on brake switch, hold throttle down until ~2800rpm(torque converter limits) and sidestep brake pedal for a boosted launch.:thumbup:

    Tonkas situation is different because his ECU tune removed safety limits which allows for 20psi+ boost in first gear when stock Stingers rarely see more than 10-12psi. Like Terry said, all that extra boost in first gear must be why he has different launches then everyone else using the brake switch.

    Last edited: Sep 6, 2019
  3. Tonkabob

    Tonkabob United States 1000 Posts Club!

    2,152
    961
    118
    Location:
    Seattle, Wa
    The code was P0200. Injector fault.

  4. Tonkabob

    Tonkabob United States 1000 Posts Club!

    2,152
    961
    118
    Location:
    Seattle, Wa
    Ok I'm either a glutton for punishment or a great Stinger advocate....
    I did 4 beast mode brake snip tests this morning. 1,2,4 where on map 0 with different amounts of throttle. 1, 2 didn't cut throttle, 4 was a tire smoker and throttle cut. All 4 tests were slower than LC. Looks like 2 issues. Timing cuts to deal with high boost and shortly after high pressure fuel drops to 5 (I assume 5 is bad? - 10-11 looks normal) and then throttle cuts. So looks like a combo of over boost and fuel pressure.

    Run 3 was Map 4 valet mode. Big timing drops to keep the boost in check and thought I heard some blow off during brake boost.
    I guess I do need to dial back my 1st gear just a bit as even during normal runs I get a slight timing dip during that 22 PSI spike.

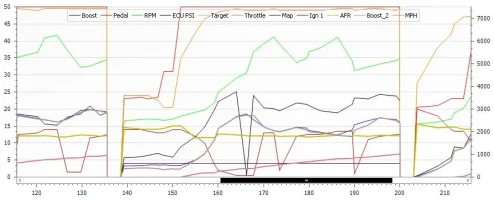

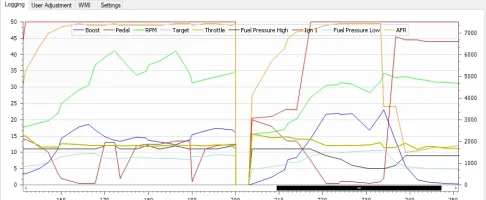

    Here is run 3 valet mode and the most aggressive map 0 launch.



    Attached Files:

    Last edited: Sep 6, 2019
    • Like Like x 1
  5. Terry@BMS

    Terry@BMS United States 1000 Posts Club! Authorized Vendor

    2,015
    1,216
    118
  6. Tonkabob

    Tonkabob United States 1000 Posts Club!

    2,152
    961
    118
    Location:
    Seattle, Wa
    What kind of fuel pressure number do you consider bad when running high E content like over E30?
    I'll try to get 1st gear boost lowered.

  7. Terry@BMS

    Terry@BMS United States 1000 Posts Club! Authorized Vendor

    2,015
    1,216
    118
  8. KingLamoni

    KingLamoni United States Member

    97
    48
    18
    Location:
    Mahwah, NJ
    My commute is 51 miles each way.

    • Winner Winner x 1
  9. Tonkabob

    Tonkabob United States 1000 Posts Club!

    2,152
    961
    118
    Location:
    Seattle, Wa
    Yeah i think you could be right. Spoofing boost up or down is going to mess with ecu adaptives when i go back to map 0, or even if i change the amount of boost spoof.

  10. Tonkabob

    Tonkabob United States 1000 Posts Club!

    2,152
    961
    118
    Location:
    Seattle, Wa
    I think I caught a piggy back infection. I was trying +3 PSI last week so the ECU saw 17-18 PSI in 4th gear (21 PSI actual) and pulled timing evenly across the board, like it would with out the boost spoof at 21 PSI. Since the ecu seen boost was fairly low the timing pull must have been torque related.
    Few days later doing a pull with no boost spoof and again in 4th gear 17-18 actual PSI, across the board timing pull. I was able to hit 20 PSI cleanly in 4th before that learned correction. Just reset the ECU for an hour in hopes it forgets its bad habits.
    Wonder what bad habits it learned doing reduced boost in valet and boost by gear? But I think xot1 is right that its better to do fewer changes and let them ride.

  11. Thorne

    Thorne United States Member

    45
    0
    6
    on your one launch where it cuts have you noticed weather or not your trims are really high? So I hit a new cut yesterday, I am working on my map6 setup where it tapers more boost in up top but in early testing I tried for a shit ton down load and I watch fuel trims go to 50 and hpfp go sad.
    If you want to use the JB4 to control launch we need terry to make a special LAUNCH map were we can limit boost to X then pour it in and you would need for John to pull some boost out of your main map.


    As for Snipping my wire.... I'm am tempted to do so, I won't have time to drive back out to seattle until first of the year and I'm not sure I can wait that long lolol.

  12. Thorne

    Thorne United States Member

    45
    0
    6
    Looks like he is seeing the same thing as me, When you hit ~20psi downlow in first gear the hpfp gets angry, I personally don't think leaning it out is a great idea during intial spool, BUT dialing back the boost in that area might help. I'll do some more testing this weekend and se what I found.

  13. Thorne

    Thorne United States Member

    45
    0
    6
    I'm not sure how fast the adaptives happen. I'd like to know as well, Its frustrating that from a roll I'm a monster and from a dig I'm amonster 1 out of 10 launchs...


    BUT atm my best launch is currently map4 using launch control

  14. Tonkabob

    Tonkabob United States 1000 Posts Club!

    2,152
    961
    118
    Location:
    Seattle, Wa
    I did the reset and car ran good today. Didn't get into 4th gear much however.
    3.84 0-60 and a pair of 7.66 1/8th at 94.5.
    Did some iat 100 and + 1 psi is as high as i went on boost.
    On limp snip or LC high pressure stays above 8 and trims below 35.
    Beast mode high pressure can hit 5. I think trims are still 35 and under but would need to double check.

  15. Terry@BMS

    Terry@BMS United States 1000 Posts Club! Authorized Vendor

    2,015
    1,216
    118
  16. Thorne

    Thorne United States Member

    45
    0
    6
    Sadly I can't update my flash atm, I don't have time to mail my ecu over atm..
