Rear door handle lights

Pda

Newish Member
16
14
3
Adelaide
Any info on how and where to run the wires? Also which pins we need to tap into?
Through the door cavity

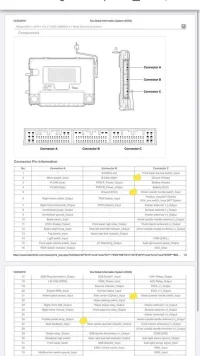

BCM Connector A pin 26
BCM Connector C pin 2 for ground, pin 5 right side handle switch, pin 21 left side handle switch


Attachments

anyone stateside have any leads on sourcing the handles in ceramic silver Ceramic Silver? Every source I have found says they don't have any
______________________________


TecNicker

Newish Member
17
3
3
Germany
Through the door cavity
Have you drilled new holes?? to cable the handle with the BCM... There is only a connector from the door to the body. And there are no free connections.
Can you open the door and make a photo?
Here is my connector an no possibility to wire from the door to the body :(


Attachments

Last edited:

Pda

Newish Member
16
14
3
Adelaide
Have you drilled new holes?? to cable the handle with the BCM... There is only a connector from the door to the body. And there are no free connections.
Can you open the door and make a photo?
Here is my connector an no possibility to wire from the door to the body :(
I didn't drill any holes, I ran the wires through the door harness grommet, and used the nearby free rubber grommet to feed the wire into the cabin. I could of covered it with some heat shrink, and loom but didn't have any at the time, haven't had any issues with it.


Attachments
