HVAC Blower

[Blackrubberducky]

After living w/ this issue for 2 years I finally decided to address this for the 3rd time… I found the culprit. The issue: this fuse was missing entirely (fuse labeled ac of course) upon replacing the fuse the blower no longer blows full speed. Super embarrassed I missed something so simple. Fixed



[D.J.]

After living w/ this issue for 2 years I finally decided to address this for the 3rd time… I found the culprit. The issue: this fuse was missing entirely (fuse labeled ac of course) upon replacing the fuse the blower no longer blows full speed. Super embarrassed I missed something so simple. Fixed

Who and why would anyone remove that?

Any other important fuses missing?

Glad it's working now



[Trenek]

This thread should die, but it seems to be reoccurring issue. My '22 stinger has same issue. Difference is my blower works fine. I Frankensteined it to be sure. Along with getting new blower and 3 resistors. I've blown 2 of those now. Checked the plugs for power and resistance. Alls good. But keep blowing the resistor. Possible ground problem? Can't get a wiring diagram to save my soul to trace the circuit. I know where 3 of the wires go. But the black wire has to be ground but where does it go?



[D.J.]

This thread should die, but it seems to be reoccurring issue. My '22 stinger has same issue. Difference is my blower works fine. I Frankensteined it to be sure. Along with getting new blower and 3 resistors. I've blown 2 of those now. Checked the plugs for power and resistance. Alls good. But keep blowing the resistor. Possible ground problem? Can't get a wiring diagram to save my soul to trace the circuit. I know where 3 of the wires go. But the black wire has to be ground but where does it go?

Am I reading this right...

Your Kia Stinger has a blower motor resistor?

Not a field effect transistor (FET)?

https://www.kstinger.com/field_effect_transistor_datc_-861.html



[Trenek]

Yes you see it right. Resistor block. Part#
97235-J5000
Thought it was the same thing.



[Trenek]

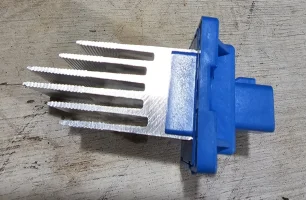

Here's a pic
