How To install aftermarket DRLs

Discussion in 'Kia Stinger How To's and Do It Yourself' started by robz32, Jun 7, 2018.

  1. robz32

    robz32 United States 1000 Posts Club! Staff Member Moderator Texas Stinger Swarm

    1,422
    668
    118
    Location:
    Houston, TX
    @Paul @ K8 Stinger Store I dont think they will fit. The vent ports on the GT bumper look bigger and the vent itself is definitely smaller on the 2.0.

  2. Paul @ K8 Stinger Store

    Paul @ K8 Stinger Store United States Stinger Enthusiast Authorized Vendor

    548
    252
    68
    Location:
    Raleigh, NC
  3. DaJackson

    DaJackson United States Stinger Enthusiast Staff Member Moderator

    963
    377
    68
    Location:
    Louisiana
    Couldn’t you also change it to be drawing power from the DRLs instead of an always on power source?

  4. robz32

    robz32 United States 1000 Posts Club! Staff Member Moderator Texas Stinger Swarm

    1,422
    668
    118
    Location:
    Houston, TX
    Absolutely.

  5. Bobr

    Bobr Unspecified Country - Europe Active Member

    169
    36
    28
    Location:
    Russia

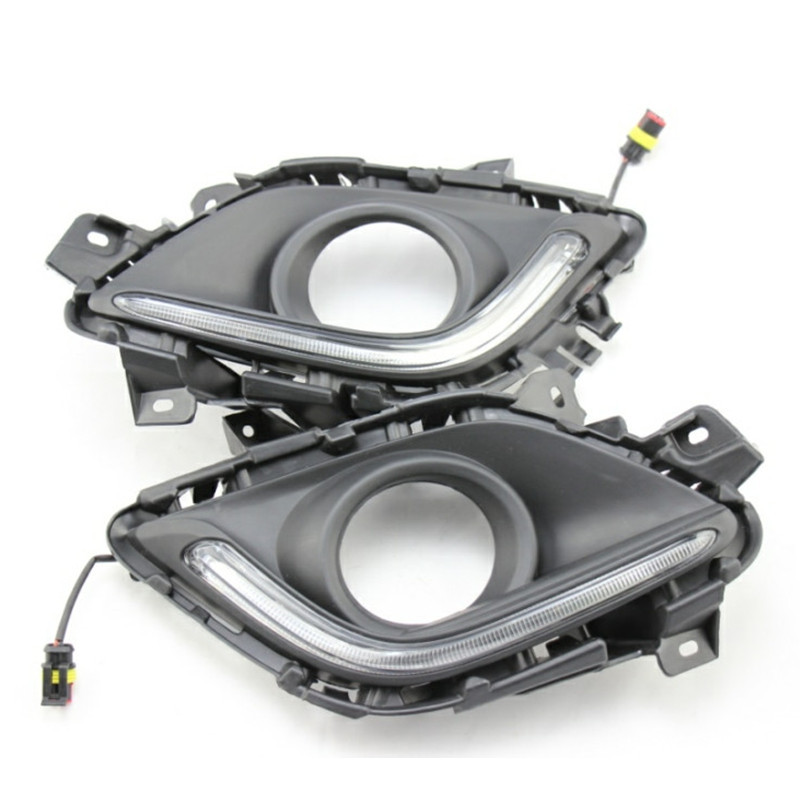

    Finally version with diffuser! Now looks good. LED power is good (only can judge by photos yet), if it will be brighter it may overwhelm factory DRLs which is unnecessary imho. LEDs may have better visibility and not so white when OFF if they would use semi-transparent diffuser like here (Mazda 6's I have):
    [​IMG]
    But that maybe not possible together with turning lights (at least I not seen DRLs with turning lights with that kind of semi-transparent diffuser). Also, those DRLs above have aluminum heatsink on the other side of LEDs, do those for Stinger have it? Maybe not necessary as those vents will be ventilated by air anyway.

  6. robz32

    robz32 United States 1000 Posts Club! Staff Member Moderator Texas Stinger Swarm

    1,422
    668
    118
    Location:
    Houston, TX
    Agree 100%. To be honest I've had these on the Stinger for almost a month, and your observations @Bobr are the same I passed along. Don't quote me on this but there might be a version 2 in the works which will correct that but will only be a DRL no blinker/turn signal, which I am fine with.

    • Friendly Friendly x 1
  7. Manchuz

    Manchuz Canada Active Member

    217
    57
    28
    Location:
    GTA
    I’m fine with just DRL with the same brightness intensity as the factory headlamps. Also, you’ve shown that you only need to replace the middle LED section so maybe on future revisions, that’s all that’s offered which would bring down the cost.

  8. Paul @ K8 Stinger Store

    Paul @ K8 Stinger Store United States Stinger Enthusiast Authorized Vendor

    548
    252
    68
    Location:
    Raleigh, NC
  9. Manchuz

    Manchuz Canada Active Member

    217
    57
    28
    Location:
    GTA
    I personally think so. The car already has enough turn signals visible to the public. The new Camry’s with their DRL in the bottom part of the grille is eye catching to me so I’d think the Stinger placement down there would be eye catching as well, even with the existing DRL on the head lamps on.

    I think people would take priority on having matching light intensity over less light with amber. These aren’t going to be proper fog lights anyways.

  10. Paul @ K8 Stinger Store

    Paul @ K8 Stinger Store United States Stinger Enthusiast Authorized Vendor

    548
    252
    68
    Location:
    Raleigh, NC
  11. robz32

    robz32 United States 1000 Posts Club! Staff Member Moderator Texas Stinger Swarm

    1,422
    668
    118
    Location:
    Houston, TX
  12. Ucinn

    Ucinn United States Stinger Enthusiast

    I want the switchback myself.. have switchbacks on my mustang.. they are cool IMO... the headlights on this car are super bright already.

  13. Paul @ K8 Stinger Store

    Paul @ K8 Stinger Store United States Stinger Enthusiast Authorized Vendor

    548
    252
    68
    Location:
    Raleigh, NC
    • Like Like x 1
  14. DiabloStinger

    DiabloStinger United States Active Member

    449
    129
    43
    Location:
    Gilbert, AZ
    I had the same ones on my Mazda 6.

    • Like Like x 1
  15. Rango

    Rango United States Stinger Enthusiast

    647
    553
    98
    Hey @robz32 ... couple of questions on the install. My wires are gray, white and purple. So i presume my connections would be ...

    ..............DRL------------------------CAR
    gray (your black) gnd-----black/orange
    white (your white) pos----------red
    purple (your red) turn---------orange

    Also, my circuit board came seperate from the DRLs. From your pics it looks like the wires in my pic below with the pink paper are the ones spliced to the DRLs ... yes??? Does it really matter which end of the circuit board is spliced to the headlights. Any other advice is greatly appreciated and thanks for your help. Hoping to install these in the next couple of days.

    Last edited: Jun 29, 2018
  16. robz32

    robz32 United States 1000 Posts Club! Staff Member Moderator Texas Stinger Swarm

    1,422
    668
    118
    Location:
    Houston, TX
    @Rango you are correct on your wire assignment.

    The end with the round capacitor goes to the harness on your car the other end (with the square) goes to the DRL.

    Let me know if you need additional information.

  17. Rango

    Rango United States Stinger Enthusiast

    647
    553
    98
    Thanks. Now the fun begins!

    • Like Like x 1
  18. Legendaryolly

    Legendaryolly Australia Newish Member

    12
    6
    3
    Location:
    Sydney, Australia
    I think I have bought the same ones as you. I'm having a go at installing mine tomorrow.
    How did you go? Any photos on the red stinger?

  19. Rango

    Rango United States Stinger Enthusiast

    647
    553
    98
    Haven't installed them yet. Gonna install them when I remove the front bumper to install Tig's CAI.

  20. Tobstertx3

    Tobstertx3 United States Active Member Texas Stinger Swarm

    249
    76
    28
    Location:
    Houston, TX
    Any update on the upgraded version?
