This is how the oil catch cans are mounted in my 3.3. Stinger:
I bought two OCC on spec in December, because I presumed two were needed, one for each side.
Shortly after delivery of the car, I took it to my mechanic and asked him whether he was prepared to mount the cans.
He checked out the engine and declared, that the can(s) should go on the passenger side, because that’s where the PCV connection is located. According to him, there is only one PCV hose and connection on the engine.
I then took a piece of 2” x 2”“ aluminum angle (2” X 2 ½” or 2” X 3” would have been better, but that’s all I had handy) and cut three slots wide and deep enough to accommodate 3 plastic pins that hold a rubber seal for the hood in that part of the engine bay. This enabled me to slide the aluminum angle between the black plastic and rubber seal until it made contact.
Following that, I marked a location for four #10 1” screws on the horizontal part of the alu angle but used only two when all was finally said & done.
I pulled the aluminum angle back out and mounted the cans, one would have done the trick, but I had two, to be connected in line. The cans were mounted on the aluminum angle with their top level or a bit lower than the hood’s rubber seal.
The whole contraption was then taken to my mechanic who used the connectors supplied with the cans but not the hose pieces. He used heavier 3/8” rubber Power Steering hose made by Continental to counteract the vacuum in the system. A thinner hose will collapse when the engine is running.
With all the heavy preparations already done before going to the shop, the install took at the most 20 minutes and was free of charge.
Total cost was about $60 for two cans including shipping.
Checking the dipstick in the cans after 6.000 km, indication is, there is about 1 ¼” of stuff in each of them. It smells like oil diluted with gasoline. I have not emptied it, because it’s too cold to work on the car.
It works. There you go!
Top View
Side View - The alu angle under the rubber seal, not quite flush on the vertical with the black plastic, because of the fasteners on the "inside"
Top View down the Firewall
The Hose Material Used
There They Are!

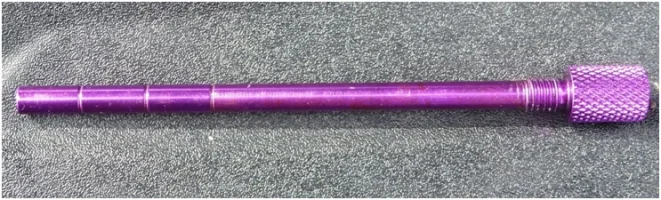

One Of The Dipsticks - The Can is filled to the top indicator line = 1 ¼”
