WMI HELP!!!

[Casper_gt2]

Hello everyone,

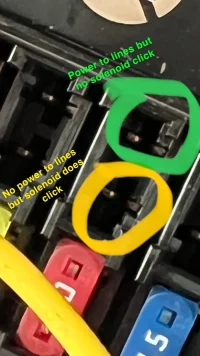

So I bought a wmi kit and got everything hooked up. I went to purge and nothing happened. I checked to see if all the wires had power, made sure my pins were in 3 and 16, made sure my grounds were good but still nothing. I remember reading if nothing happens then check the fuse, so I did. I switch the fuse to the opposite side then got a click from the solenoid but then my other wires had no power. Switched the fuse back to the original side I had it on then the opposite happen... power but no solenoid click. Does anyone know what I'm doing wrong or missing? And yes I'm on Map 7 and input all settings. Thanks!



[Casper_gt2]

So I got a fuse tap because I thought if it's touching both points then it should work... hell nahh, it's the same thing with the tap. If I flip it one way or the other it does the same actions above



[Terry@BMS]

If FSB has power an LED inside it will blink when opened up. If not, then its not getting power or ground.



[Casper_gt2]

If FSB has power an LED inside it will blink when opened up. If not, then its not getting power or ground.

I ended up figuring it out last night. I went and bought some new fuses and put the fuse tap in a different empty spot then it worked



[Casper_gt2]

If FSB has power an LED inside it will blink when opened up. If not, then its not getting power or ground.

Hey terry I got another question about a wmi kit I was helping my friend install. All electrical connections are good, fsb has power but the light is blinking red. The orange wire doesn't have the pin connected to it so it is not sitting in slot 3 properly. When I take the fuse out of the slot and put it back in, the pump operates for a second but won't purge. Do you think the orange wire is the solution to this problem? What's your thought on this?



[Casper_gt2]

Never mind it was a battery problem we got it fixed!
