Need help with CK71 on '22 GT1

[Devin]

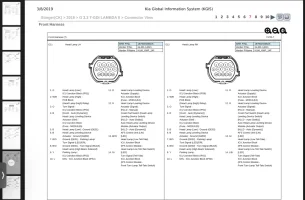

The instructions I can find online for the CK71 install don't reflect the wiring harness on the '22 GT1. Is there a resource to see the pinout on the '22? I don't believe the wire that the manual references exists for my model.

Instruction harness



My harness





Specifically the only orange wire doesn't seem to exist



[nhcowboy28]

Here’s a thought… call the manufacturer…..



[General_Vodka]

Contacting ck71 would probably be your best bet. Here is the wiring for the 2018 no idea if it will help but that's all I got.



[Devin]

Thanks for the suggestions. I did end up submitting a support request, but didn't think it read impossible that someone with a '22 had already done the wiring.



[Devin]

Never got a response from the CK71 folks. However...




my multimeter and I figured it out.



[General_Vodka]

Never got a response from the CK71 folks. However...

View attachment 70273


my multimeter and I figured it out.

Was my schematic of many help? Looks good bro



[NYBIOMED]

Could you post what you learned about the CK71 install for the MY2022 please. Thinking about this myself, but would love a yellow lens if available...?



[G70LEbyAdoom]

Could you post what you learned about the CK71 install for the MY2022 please. Thinking about this myself, but would love a yellow lens if available...?

id be willing to bet that the yellow is either the camera doing it or a slight tint.



[Devin]

Could you post what you learned about the CK71 install for the MY2022 please. Thinking about this myself, but would love a yellow lens if available...?

id be willing to bet that the yellow is either the camera doing it or a slight tint.

It's definitely more white than the pic. When using the turn signals it is very yellow.



[Devin]

Was my schematic of many help? Looks good bro

Thanks, I was pretty happy with it.

I didn't end up using the schematic, although it spurred me to investigate it myself.

For @NYBIOMED , first thing I learned was to take out the air boxes.


Drivers side GT1 harness




Passenger side



[dimadozenn]

Thanks, I was pretty happy with it.

I didn't end up using the schematic, although it spurred me to investigate it myself.

For @NYBIOMED , first thing I learned was to take out the air boxes.
View attachment 70293

Drivers side GT1 harness

View attachment 70294
View attachment 70295

Passenger side

View attachment 70296
View attachment 70297

Glad someone figured this out. still haven't been able to find much more info for the '22. can you confirm/update the wiring diagram?

Driver side-
(power?)Red to Yellow
(turn signal?)Yellow to Orange
Black to Ground

Pass side-
Red to Yellow
Yellow to Black/Orange?
Black to Ground
