M&S side skirt install with mud flaps and puddle lights

[Rango]

Modding the skirts to fit with OEM mud flaps and puddle lights.

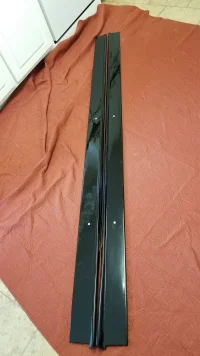

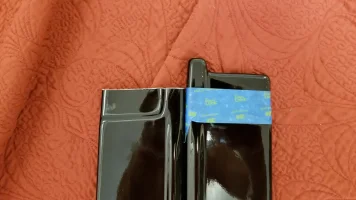

Had to trim about 1 inch, front of the skirts to fit.

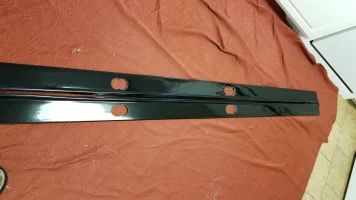

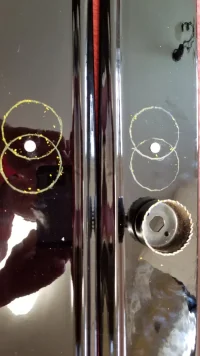

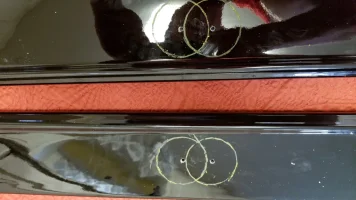

Then marked where the puddle lights would shine through. Drilled pilot holes and cut.






Tomorrow ... will dremel the holes to make ovals, sand, and fill the gaps from cutting with 3M 540 polyurethane sealant, and apply 1 inch 3M VHB tape with adhesive promoter to the skirts.

Then the fun begins! Will stick skirts in place and secure with self-tapping screws and push pins. Roll safety all!



[Manchuz]

Nice work! Don't forget to show post pictures with it installed and the puddle lights shining through.



[Rango]

Nice work! Don't forget to show post pictures with it installed and the puddle lights shining through.

Will do!



[bumble bee]

Rango, o man i seen this pic of your puddle lights. Man, see you at the meet. My friend!

fitz



[Itsakia]

Modding the skirts to fit with OEM mud flaps and puddle lights.

Had to trim about 1 inch, front of the skirts to fit.

View attachment 11930
Then marked where the puddle lights would shine through. Drilled pilot holes and cut.

View attachment 11931
View attachment 11932
View attachment 11933
View attachment 11934

Tomorrow ... will dremel the holes to make ovals, sand, and fill the gaps from cutting with 3M 540 polyurethane sealant, and apply 1 inch 3M VHB tape with adhesive promoter to the skirts.

Then the fun begins! Will stick skirts in place and secure with self-tapping screws and push pins. Roll safety all!

looking good!



[Rango]

Rango, o man i seen this pic of your puddle lights. Man, see you at the meet. My friend!

fitz

Unfortunately I will not be able to make the Chicago Stingerfest. I'm pissed!!! Take a bunch of pics!



[bumble bee]

what rango.......that sucks



[DaJackson]

@Rango did you take pictures of the installed side skirts?



[Rango]

@Rango did you take pictures of the installed side skirts?

I did not. Did not use the push pins. I used screws and nuts. Plus had to cut ovals for the OEM puddle lights. Also had to trim for mud guards. It was a bitch!!!



[Gtecko]

finished looks pictures though ?



[Rango]

finished looks pictures though ?
