Eibach Anti-Roll Sway Bar Kit with Springs for Kia Stinger GT
- Thread starter Kia Stinger
- Start date
DaJackson
1000 Posts Club!
So I was poking around the rear of the car tonight and noticed the stock rear sway bar is only 15mm. This seems really small, especially considering how flat the car handles. I was also surprised to see this upgraded bar is only 19mm. For comparison my GLI rear bar is 21mm, and the Eibach M3 bar is 25mm.
Anyone have any ideas why the rear bar would be so small?
Anyone have any ideas why the rear bar would be so small?
Rufus
1000 Posts Club!
The set says for GT. I imagine the spring rates are GT-specific, but wouldn't the sway bars be interchangeable between 2.0 and V6 models?
Last edited by a moderator:
______________________________
17th_Letter
Active Member
i would keep in mind when looking at suspension components that they are designed to work with what may already be installed. Comparing a single part in size to another for a different car is pointless. The M3 may need a larger sway bar cause the spring rates are considerably different from than the stinger, you also have to take into account weight distribution, vehicle weight, Strut dampening force and even tire tread width and rim size. Suspension tuning is a very intricate balance of take and give.
That being said, even though the factory rear bar on the stinger is 15mm we dont know if its hollow or not, i'm guessing its solid based on the behavior of the car in tight sweeping corners. Increasing only to 19mm maybe all that is needed to reduce body roll further with out overloading the suspension or the tires.
That being said, even though the factory rear bar on the stinger is 15mm we dont know if its hollow or not, i'm guessing its solid based on the behavior of the car in tight sweeping corners. Increasing only to 19mm maybe all that is needed to reduce body roll further with out overloading the suspension or the tires.
From interior to exterior to high performance - everything you need for your Stinger awaits you...
phxgt
Active Member
mhal8876
Stinger Enthusiast
Nice find!!!
Brendan @ K8 Stinger Store
Authorized Vendor
Ozstung
5000 Posts Club!
Can you tell us how much the delivery to Sydney, Australia the swaybar pair would be please?
______________________________
From interior to exterior to high performance - everything you need for your Stinger awaits you...
Brendan @ K8 Stinger Store
Authorized Vendor
Looks like we have them at $605.27 USD shipped for both front and rear sway bars
Kia Stinger Eibach Anti-Roll Kits
SteveCo
1000 Posts Club!

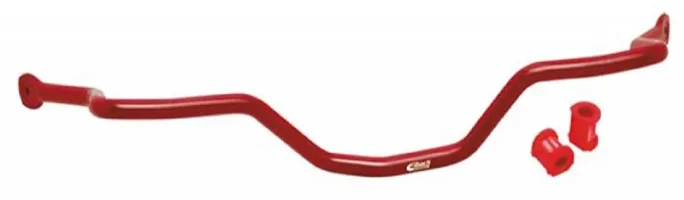

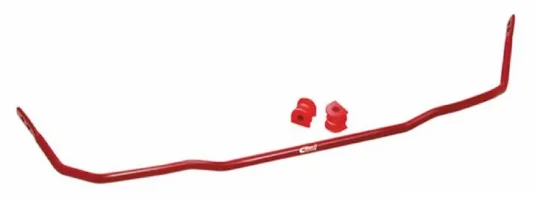

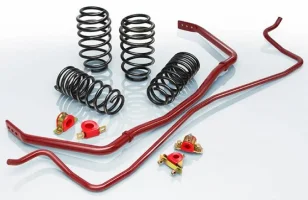

@Paul @ K8 Stinger Store , the pictures on your site for the PRO-PLUS kit (springs and bars), the individual roll bars, and the front/rear combined roll bar kit all show different bars, with different mounting holes, bar shape, and mount fittings.
Is this because they are generic pictures - or are the sway bars in fact different depending on which option you go with? The specifications all state 19mm front, 25mm rear.
Is this because they are generic pictures - or are the sway bars in fact different depending on which option you go with? The specifications all state 19mm front, 25mm rear.
KLR STINGER
Stinger Enthusiast
- Joined
- Mar 31, 2018
- Messages
- 512
- Reaction score
- 409
- Points
- 68
Those are all generic pictures. The stinger parts are different than any of those pictures
SteveCo
1000 Posts Club!
Good to hear - thanks for the info. I've had the rear end at the edge of losing it's composure a time or two, most notably in a fast sweeper on a nearby highway ramp with a dip midway through the curve. Would be nice to quash that behaviour and also take out some of the overall body roll, but I don't want to do that at the expense of the supple ride I've been enjoying.
Sounds like this might be a good solution, maybe with just the bars to start with ...
Sounds like this might be a good solution, maybe with just the bars to start with ...
Last edited:
Ruturaj
1000 Posts Club!
From interior to exterior to high performance - everything you need for your Stinger awaits you...
mandasol
Active Member
Just a heads up, check with wherever you purchase if they actually have them in stock in their possession ready to ship. Most online sellers drop ship. Which normally is fine except that Eibach springs and bars are in high demand for the Stinger and are on constant back order and they are still filling a long back log of orders, so an order placed now could take weeks or months to fill. There are a few retailers that carry them in their own inventory, but even those guys sell out quickly.
