Description
The key to a safe and effective WMI setup is tuning integration. The Kia Stinger 2.0L/3.3L Stealth BMS WMI kit integrates to the JB4 tuning system allowing for precise mapping based on boost, throttle position, engine speed, intake temperature, advance, gear, and other data elements available to the JB4 through its CANbus system. In addition, a pump flow signal is fed back to the JB4 allowing for a safe and smooth progressive boost mapping. If the tank runs empty or the flow drops for any reason the JB4 will safely back down performance to avoid detonation. Boost is held low until WMI is properly flowing to avoid tip in knock common with non-integrated WMI setups. In addition, WMI can be activated or disabled right from the JB4 Mobile app, will automatically disengage during traction control or safety map situations, and WMI flow data can be displayed via your JB4 Mobile logging device.

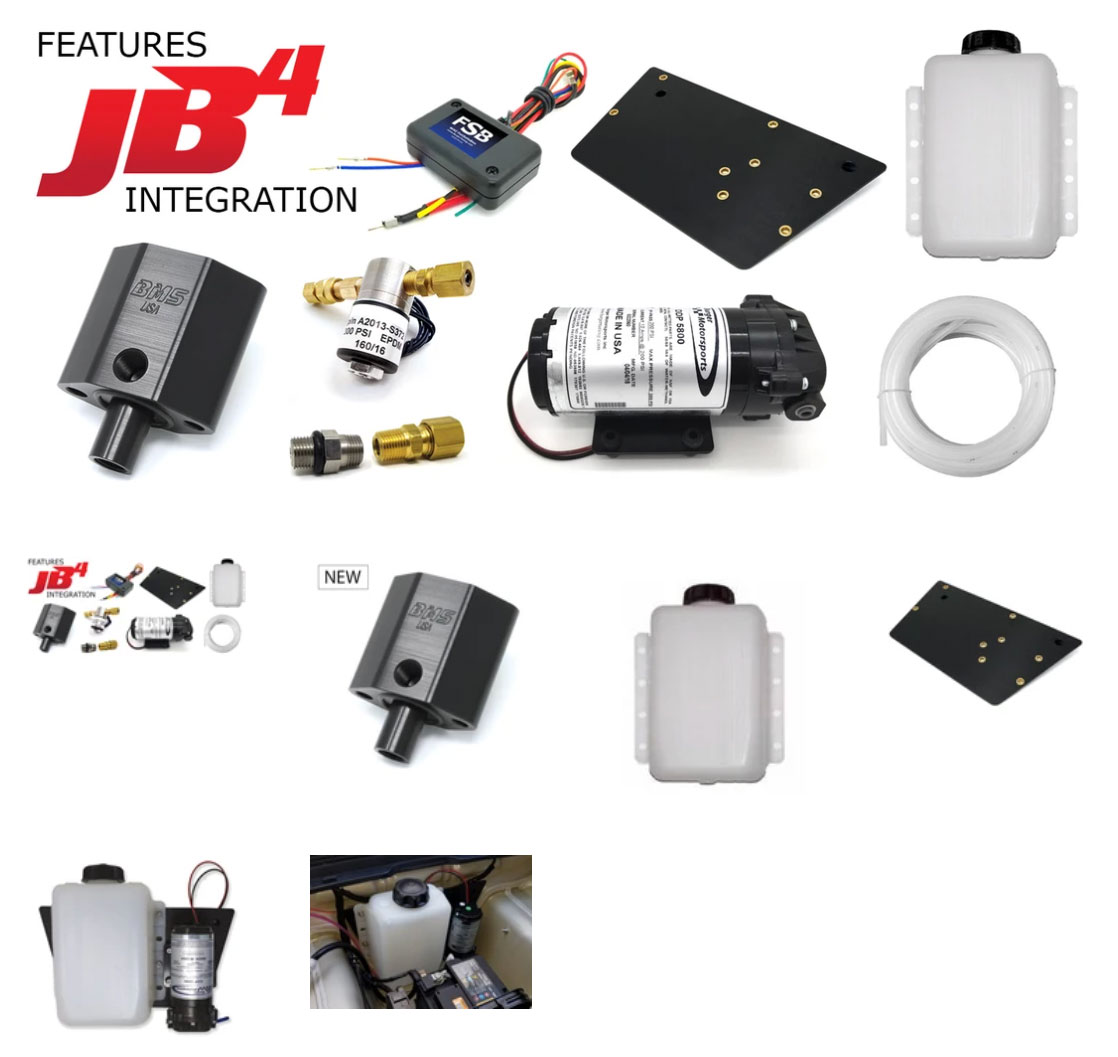

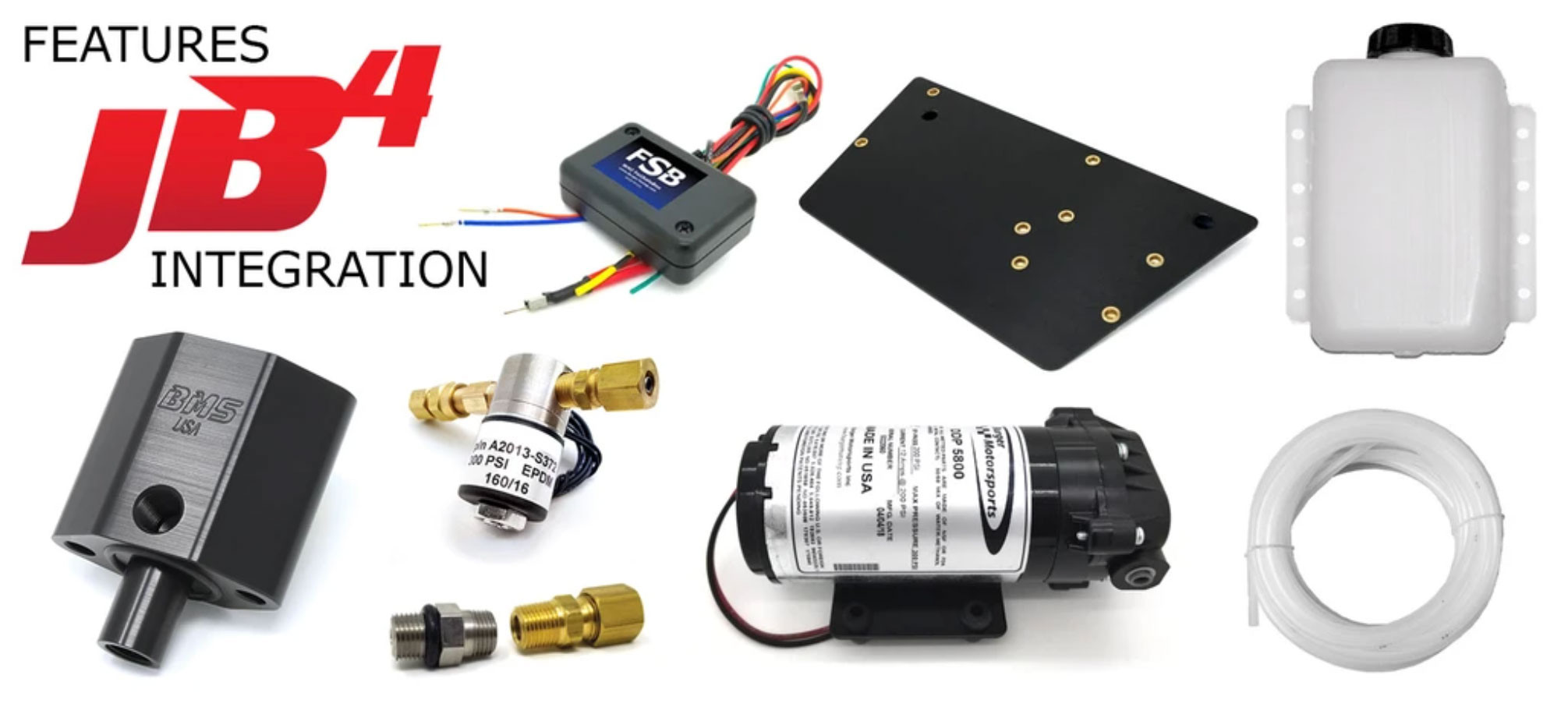

The BMS WMI kit includes a high quality Aquatec WMI pump made to our specifications, high speed solenoid with leak-free compression fittings, a WMI filter, and all required wiring and mounting hardware.

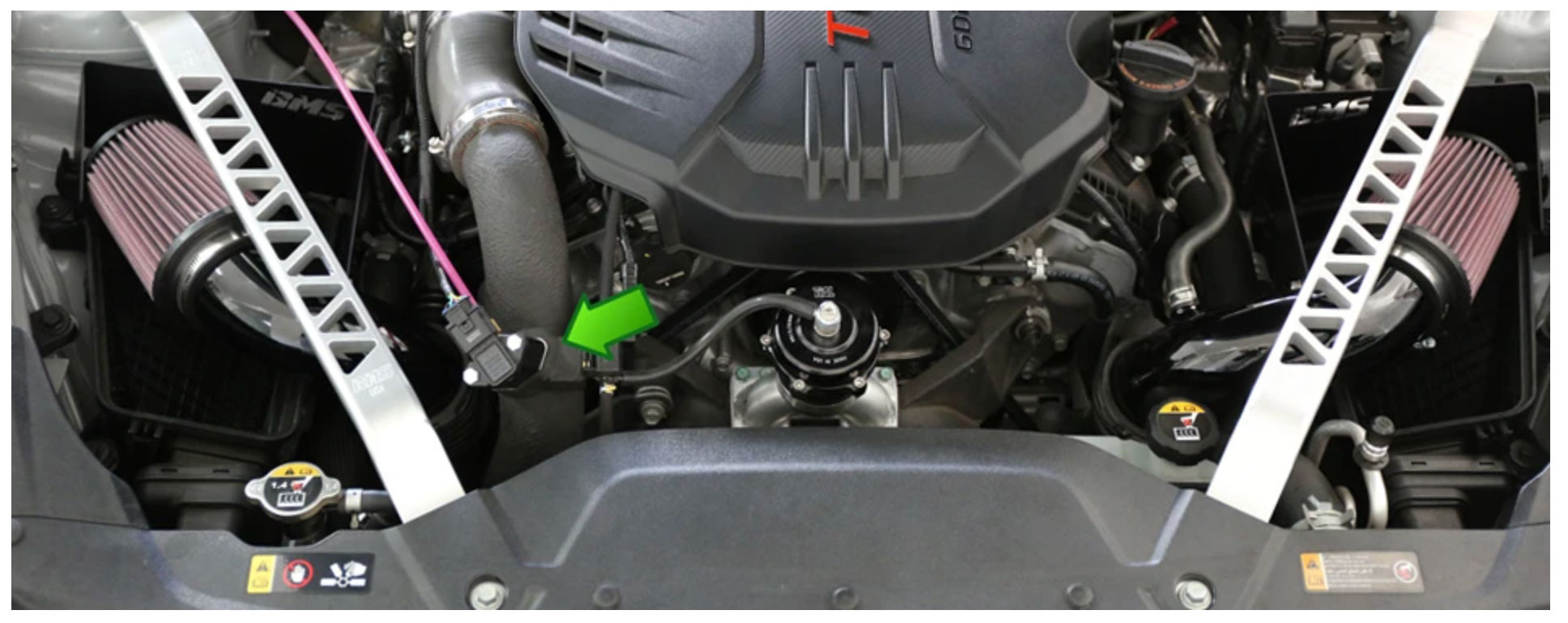

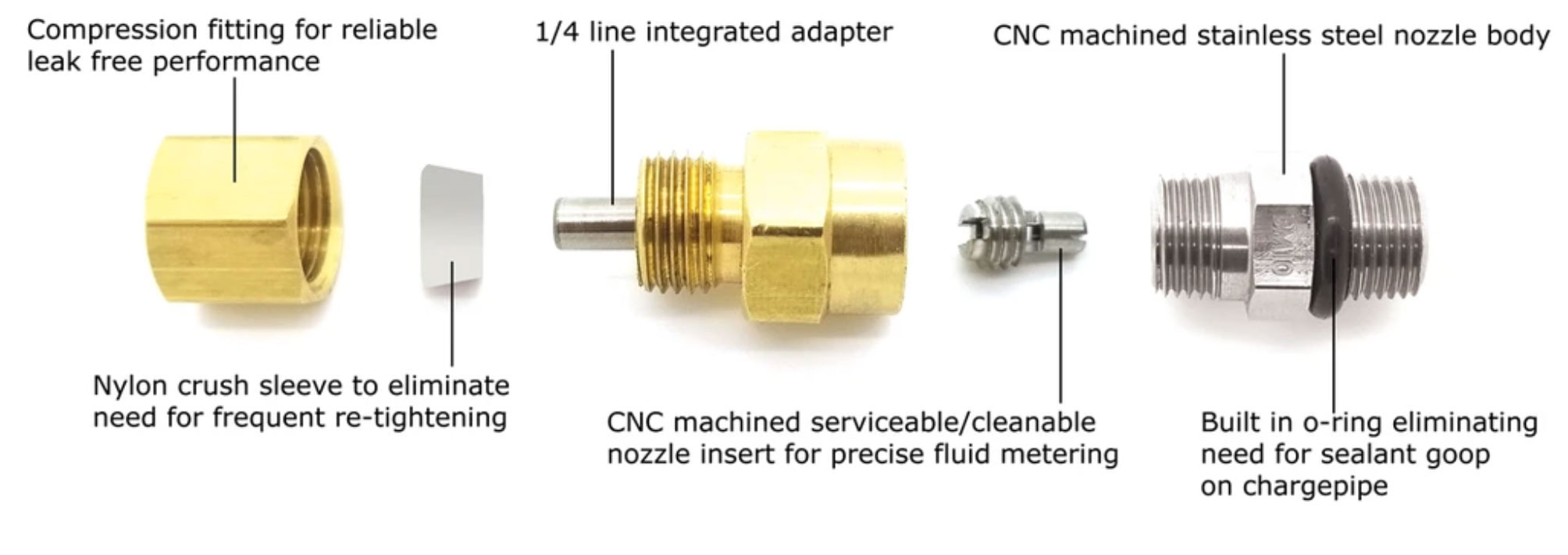

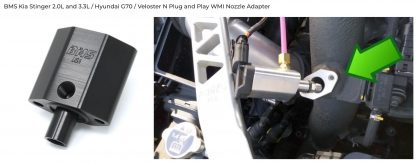

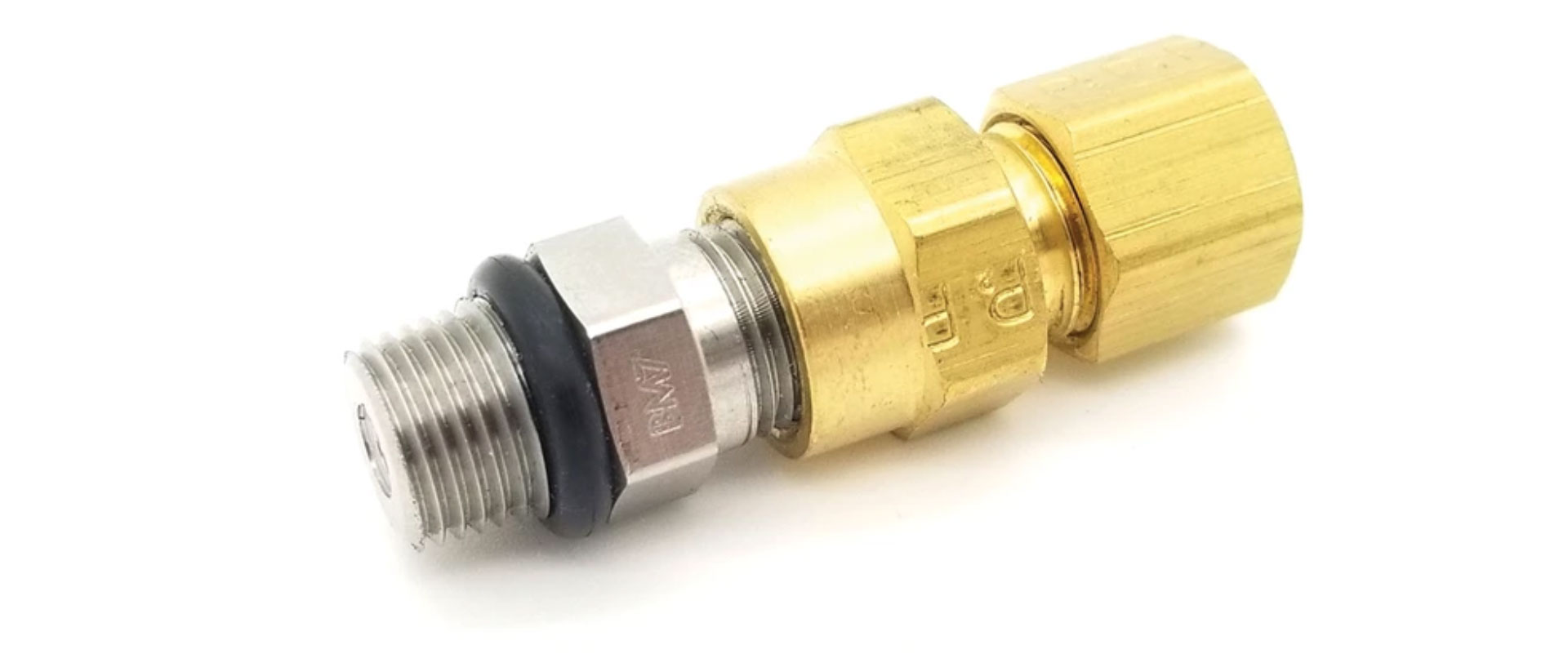

We offer a unique direct fit nozzle mount adapter for the 3.3L platform eliminating the need to drill/tap a nozzle or tig weld to your factory charge pipe. We suggest a single BM10 nozzle for those running at least a 49/51% WMI mixture, or a single BM5 nozzle for those who intend to run water only.
Note: The spare tire will need to be removed from the vehicle when using this kit.
