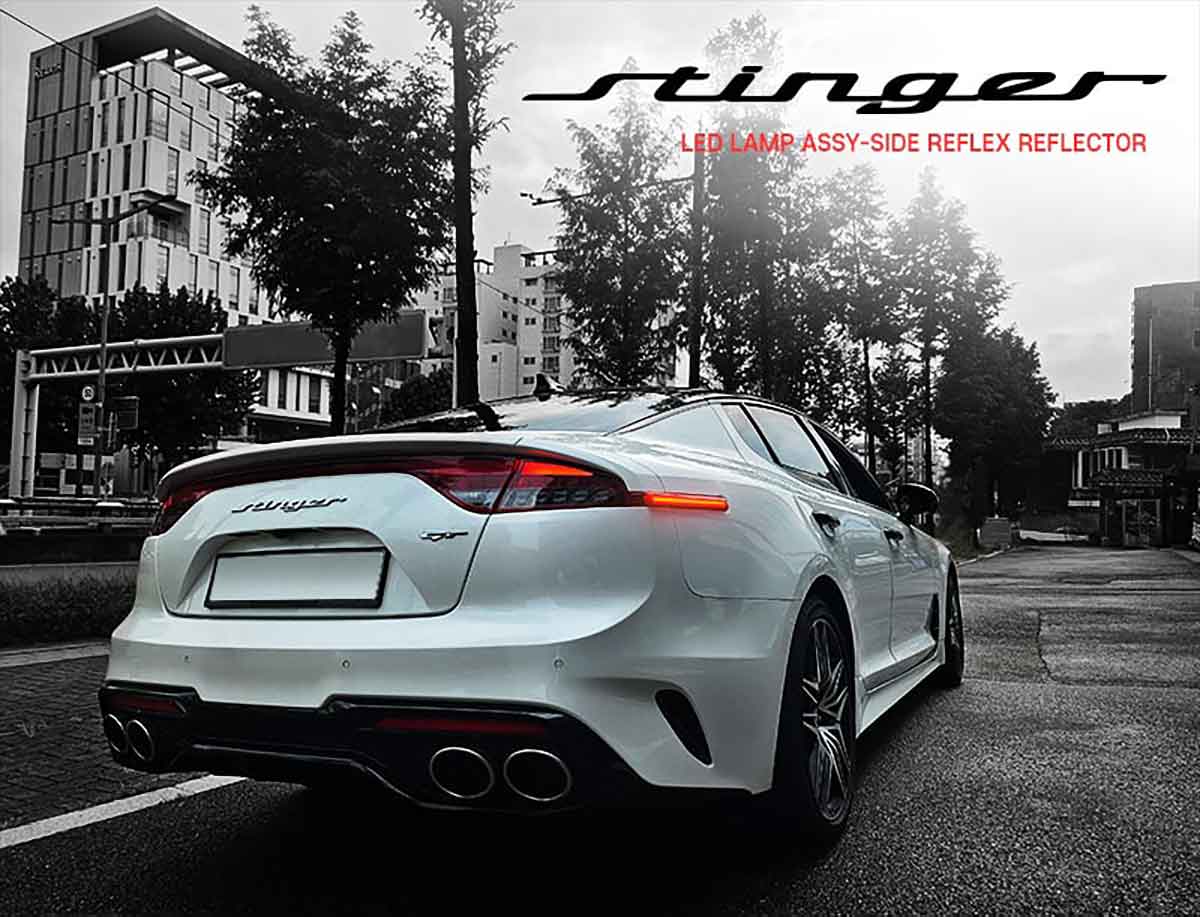

LED Side Reflector Set (All Years and Model Types)

$299.00

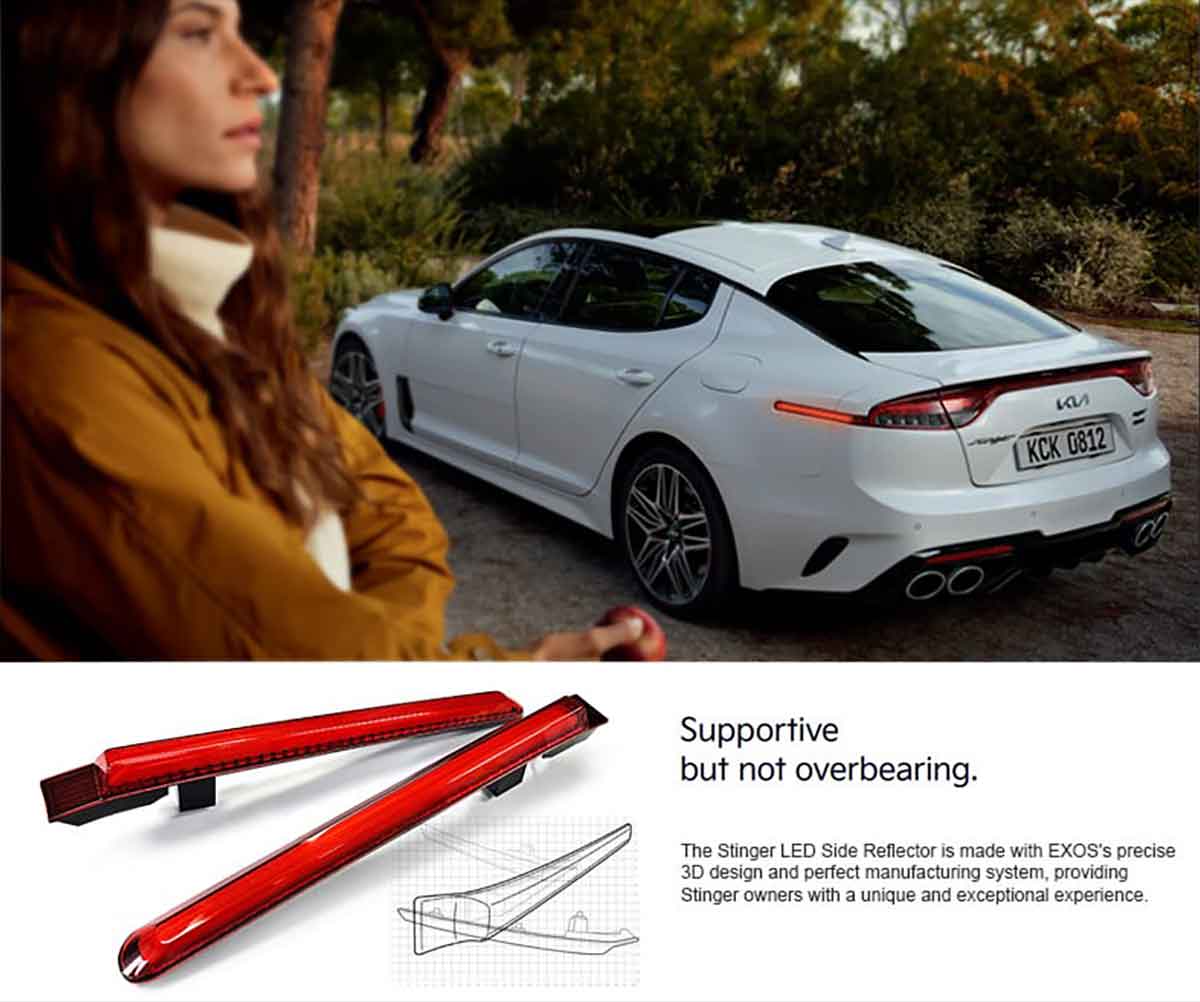

Designed and manufactured in South Korea by EXOS. All components, including the LEDs, are made in South Korea. The LED side reflectors have three functions:

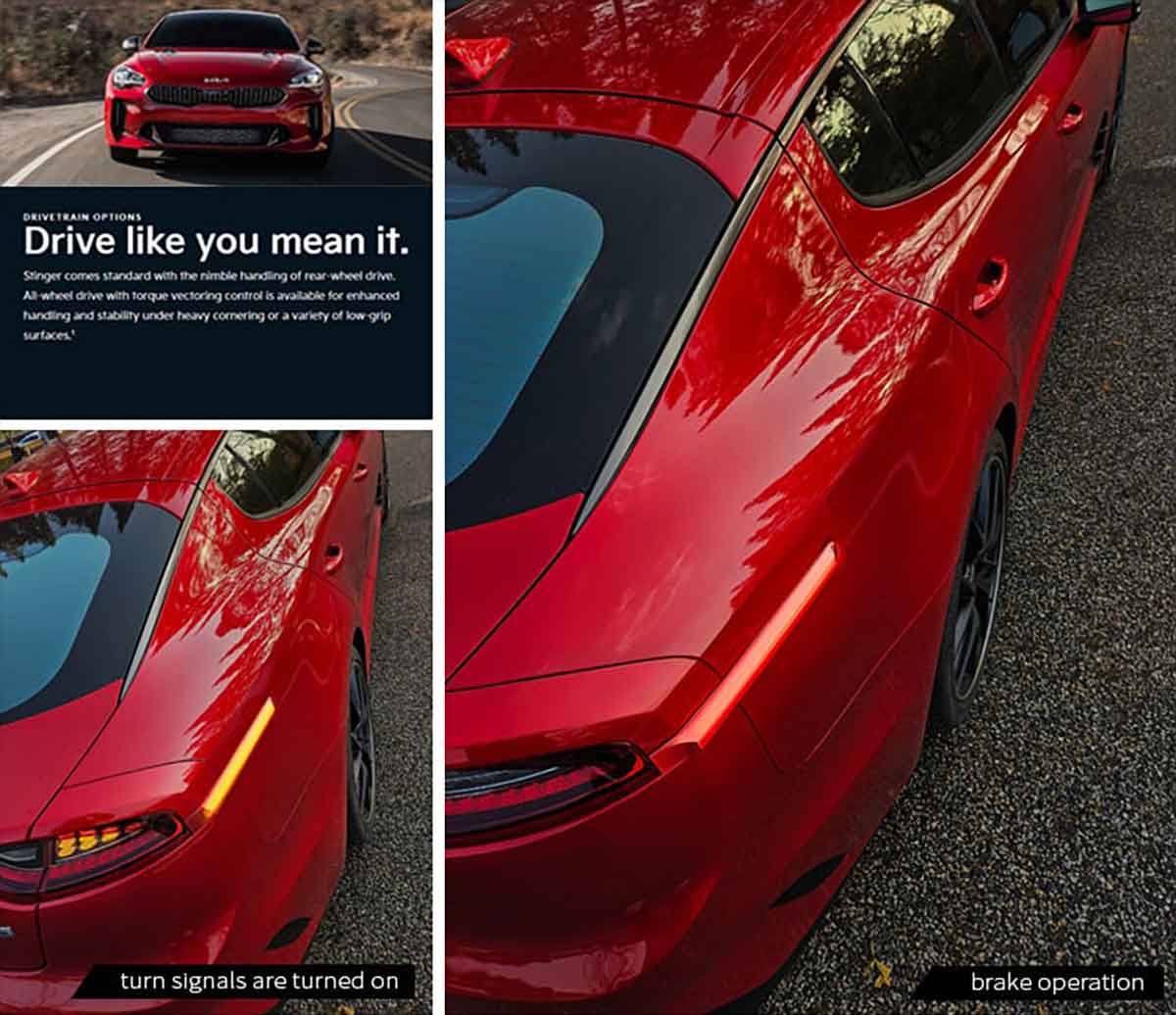

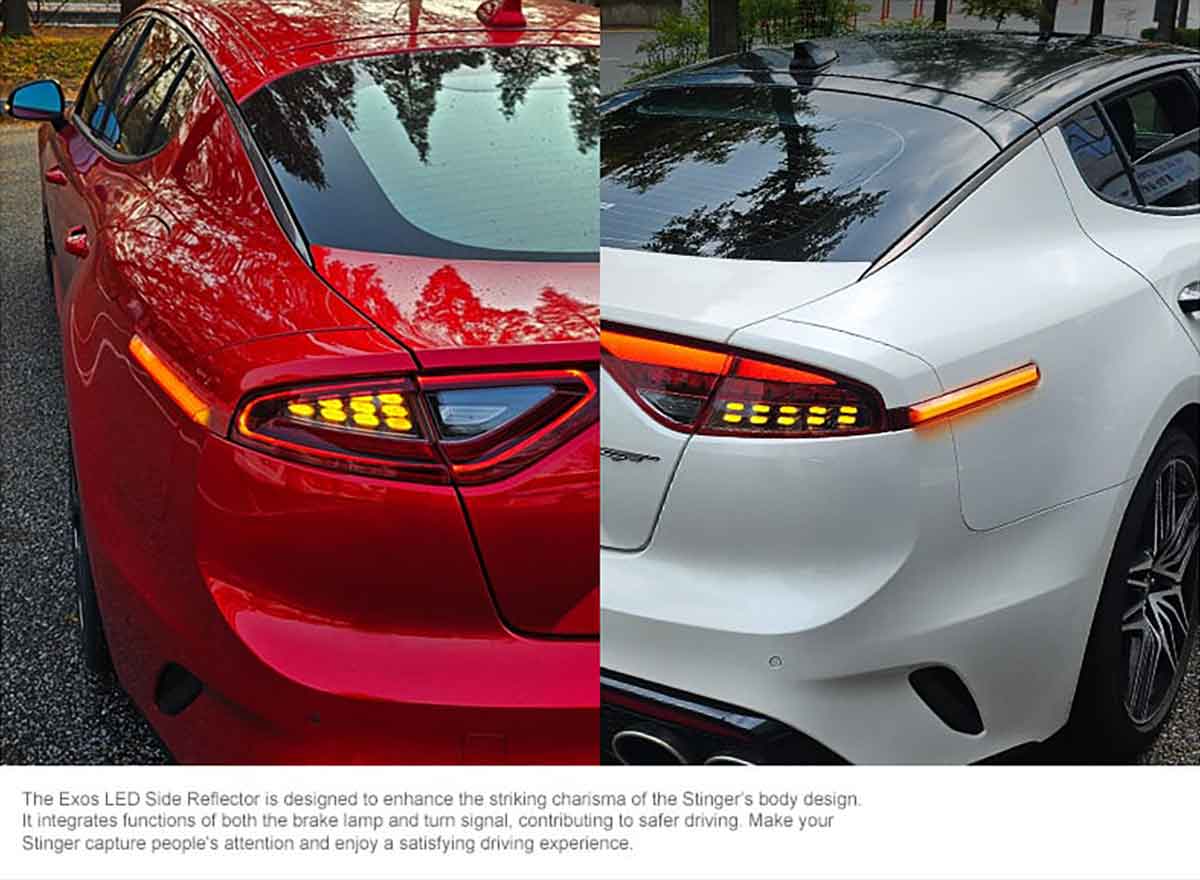

  • Light up red for as parking lights
  • Light up a brighter red for brake lights
  • Blink yellow for turn signals

Both sides included and fit all Stingers. This product is currently being drop-shipped until we get them in stock. Shipping will typically only take a few days to reach you as we use an expedited FedEx method. Uniquely when not lit they’re red – but the turn signals will light up yellow. The brake and parking light will be red.

To install, (most detailed instructions below) you need to remove the inner lining (there are four 10mm bolts you need to remove after you take out the floor cover and spare tire cover) and tail light. Then there are three screws holding each side in. After you remove the standard reflectors, install the new LED pieces…

Videos of the LED rear side reflectors in action:

Description

INSTALLATION INSTRUCTIONS:

1. Open hatch
2. Remove center hatch trim piece. Trim is removed by undoing two plastic fasteners on either side and popping out four retaining pins.
3. Unscrew the four screws that hold down trim pieces on inner fender wells.
4. Pop out four retaining pins that hold down side trim pieces.
5. Remove black trim pieces flanking the tail light assemblies.
6. Unscrew tail light and remove assembly.
6a. *Passenger side only* unscrew radio amplifier to gain access to three screws that attach reflectors to body.
7. Pop off OEM reflector.
This will require splicing into the tail lights: four wires, one ground, one parking light hot, one brake light hot, and one turn signal hot.
8. Install aftermarket insert, and screw into place.
9. Reinstall tail light assembly.
10. Reinstall fender liner.
11. Reinstall center trim piece.
Total estimated install time: 90 minutes

Additional information

Weight 1 oz
Dimensions 1 × 1 × 1 in
