Poor ign timing on JB4 Map 1 with 93 octane plus booster?

Discussion in 'The Ultimate Kia Stinger Tuning Forum' started by Mr. Tech, Sep 5, 2019.

  1. Mr. Tech

    Mr. Tech United States Member

    91
    9
    8
    Hey guys, I was having issues with poor performance on Map 2 with 93 octane so I switched back to Map 1 and ran 93 octane from Shell for a full tank. On the next fill, I put in Lucas Oil Octane Booster which is supposedly good for 3-4 octane, giving me roughly 96-97 octane. I put the booster in on an almost empty tank, then put a full tank of 93 behind it.

    Below is a snapshot of one of my logs after going through nearly half a tank to give time for the booster to mix in. My timing on cylinders 3 and 4 is "almost" always lower than the other four cylinders. Sometimes by as much as 6 or 7 degrees. The variance is most visible in third gear in the snapshot below, but I've seen the same issue periodically in 1st and 2nd gear.

    For my mods, ambient temp, and altitude, about 230ft above sea level, my Stinger seems to be considerably slower than other Stingers with similar mods at higher altitudes and temperatures. I'm a solid .4 to .5 seconds slower than most other cars with similar mods (4.9 seconds DOWN a straight on-ramp on a cool, dry, 65 degree day). Any idea on what could cause this, now that I've ruled out octane?

    Current setup: GT2 AWD, 19" OEM wheels with OEM Michelin Pilot Sport tires with more than half the tread life left, Denso plugs gapped at .022, DIY AEM intakes, JB4 with fuel wires, Map 1, 93 octane with a full bottle of Lucas Oil Octane Booster.

    The only thing I can think of is that it has to do with the spark plugs. I gapped them all with feeler gauges and a BMS style screw gapper. Is it possible for a variance in spark plug gap or quality to cause this type of issue?

    Any thoughts on what to look into would be appreciated. I'm tempted just to replace plugs 3 and 4 and see what happens, but if the issue ends up being something like the .022 gap being too small, I'd rather not waste the time/money to get nowhere.

    Thanks in advance for any help!

    Screenshot_20190905-164949_JB4 Mobile.jpg
    Screenshot_20190905-165008_JB4 Mobile.jpg


    Attached Files:

    Last edited: Sep 5, 2019
  2. Terry@BMS

    Terry@BMS United States 1000 Posts Club! Authorized Vendor

    2,019
    1,219
    118
  3. Mr. Tech

    Mr. Tech United States Member

    91
    9
    8
    I haven't tried Map 4, but they don't line up on Map 0 with 93 octane either (log attached). I saw a log from Get Stung a while back that said it included all cylinders, but they were perfectly on top of each other for the entire 1/4 mile. Is that even possible? I only saw a screenshot, not the actual csv.

    What else could it be, other than a plug?


    Attached Files:

  4. Terry@BMS

    Terry@BMS United States 1000 Posts Club! Authorized Vendor

    2,019
    1,219
    118
  5. Mr. Tech

    Mr. Tech United States Member

    91
    9
    8
    I can try Map 4, but I'd imagine that, if it's happening on Map 0 with 93 octane top tier gas, which is higher than Kia requires, it'll continue to happen even with less boost.

    If this was your Stinger and you saw that, even on Map 4, two cylinders had poor timing, what would be the next thing you would check?

    Also, thanks for the fast responses!

  6. Terry@BMS

    Terry@BMS United States 1000 Posts Club! Authorized Vendor

    2,019
    1,219
    118
  7. Revvdmedia

    Revvdmedia Canada Stinger Enthusiast

    915
    223
    43
    Location:
    Canada
    I pulled your map 0 log into Excel because I like to pull raw data to view min/max/avg on timing. Typically I find cylinder 1 is the "weird" cylinder since it'll usually dump timing to zero for 2 to 3 cells from first to second gear, and it's usually the least aligned with the other cylinders I find on most logs, 2 thru 6 are usually consistent. That said, on the Map 0 log, if I remove the zeroes on gear changes, I only see cylinder variations greater than 3 degrees in 5 out of 28 cells, and all are variations between first cylinder and the rest, the "normal" anomaly. Basically, I don't see anything unusual on that log, except maybe a "long" gear shift going first to second showing 3 cells of zero ignition advance, I like to see 2 at most on a quicker shift in my experience.

  8. Tonkabob

    Tonkabob United States 1000 Posts Club!

    2,163
    961
    118
    Location:
    Seattle, Wa
    I dont think small gap is an issue. I did a rush regap during a drag race day and accidently gapped a few at .018, .019 .020 and it ran fine. Back ip to .026- .028 now.

  9. Mr. Tech

    Mr. Tech United States Member

    91
    9
    8
    Thanks @Revvdmedia for digging into this for me! Do you know of anything that would cause a "long" shift? The difference of one cell sounds to me like it could just be a variance from car to car, but if you think there's some science behind that, I'm all ears.

    And thanks @Tonkabob for the input! Also, you changed spark plugs at a drag strip? Took me an hour to change mine, not counting gapping. You should be in a pit crew or something haha.

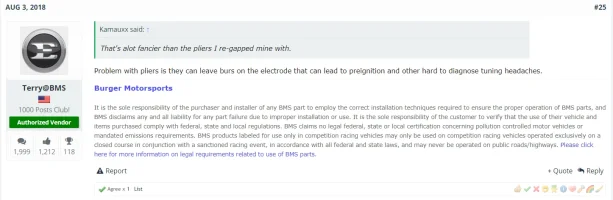

    I just saw this post from @Terry@BMS when I was researching spark plugs.

    Son of a gun, this might be my problem. I used a gapper similar to the one Terry sells. However, looking closer at the picture for Terry's version, I see that it's rounded where it touches the electrode. The one I used isn't and I noticed it put a small cut into the top of at least one electrode. I noted it, and put the worst looking spark plug in cylinder 4 since it's the easiest to get out. Surprise surprise, cylinder 4 generally has the worst timing. I totally forgot about this until recently, when I saw that cyl 4 was one of the issues.

    I also found out that I may have gotten knock-off Denso's from the company I ordered them from. I reached out to Denso yesterday to confirm whether or not they completely redesigned their plugs because the ones I got look nothing like the picture Denso has on their site. Mine don't have the blue rings and the post is dark grey, not brass colored. The text also looks slightly different.

    I think the next steps for me are to buy new Densos direct from Denso, buy Terry's gapper, and replace my plugs. Hopefully that makes a considerable difference in the tightness of my timing. And who knows, maybe I'll start seeing performance that more closely matches other tuned Stingers.

  10. Revvdmedia

    Revvdmedia Canada Stinger Enthusiast

    915
    223
    43
    Location:
    Canada
    I don't have anything scientific regarding long shifts, all I have is general data that I can draw a conclusion from. My car and your car seem to be a bit slower than the faster ones. One commonality I found was the duration of the first to second shift which reflects in an Excel dump of our logs, showing 3 cells of ignition zero on Cyl 1 during the shift. I also feel that my first to second gear shift is long, especially when compared to some YouTube videos I've seen of tuned Stingers. Also, sometimes my shifts are quicker than others, it is inconsistent. If the shift is long and timing is pulled, that is going to slow us down.

    Let us know if your plugs change your situation though. I don't see much cylinder variation in my logs, so I don't think there is any issue with my plugs, especially since the mechanic buddy of mine closed the gap by pushing down the electrode on a flat surface, no tools that could cause burrs. I think the only thing holding me back is our not-fantastic Canadian gasoline.

  11. Mr. Tech

    Mr. Tech United States Member

    91
    9
    8
    Have you tried using octane booster? I've heard of people having decent success with that. Granted, it didn't help me much, but I'm hoping it's just because of having bad plugs.

    Also, update on the plugs. I spoke with one of the lead customer support techs from Denso. Unfortunately, he's unsure whether or not my plugs are knock-offs because the terminal was changed from a gold color to a dark gray recently. The only detail he's a bit concerned on is the blue rings. Some of their plugs have them, some don't, but he couldn't confirm whether or not the 5346's have them (none on hand). He at least gave me the name of their direct distributor who are guaranteed to be selling genuine plugs. I just ordered a set and will report back once I know if my original set matches the new set.

  12. Revvdmedia

    Revvdmedia Canada Stinger Enthusiast

    915
    223
    43
    Location:
    Canada
    Octane booster is on my list of things to test, but with winter pretty much rolling in any day now, that might not be until next May or so. I also wanted to test other things like open intakes vs. with my heatshields vs. stock air box to see what finds the best balance of performance, ease and fun.

  13. Stinger-Performance

    Stinger-Performance United States Member

    38
    4
    8
    Location:
    Shawnee, KS
    The "off the shelf" octane boosters don't boost octane that far. When they say 3-4 octane points, that means 0.3-0.4, not 3-4. Points means tenths, numbers means a whole number. If the octane booster doesn't provide mix ratios for different octane boosts, you can assume it's not going to boost it significantly. Simply saying it treats "up to 25 gallons" isn't very helpful as it won't raise octane the same amount in different amounts of fuel. Is it 3 points in 25 gallons or 3 points in 5 gallons?

    Octane boosters like Torco will legitimately raise octane to 100+ depending on the ratio you mix it.

    Last edited: Sep 12, 2019
    • Agree Agree x 1
  14. xot1

    xot1 Korea, Republic of 1000 Posts Club!

    1,323
    805
    118
    Location:
    Seoul
    Lucas booster only increases by 2~2.5 octane.
    For solid octane you'd better use Torco or Boostane. But make sure you use an injector cleaner along with such these products.

  15. Hapa88

    Hapa88 United States Member

    96
    27
    18
    The Lucas Booster supposedly can boost octane by 3 full octane numbers. It was tested a while back.
    Source: Lucas Octane Booster Test. One Tank One Bottle

    Basically you need 93 octane gas to start and 1.28 oz per every gallon of gas added.
    Since the Stinger has a 15.9 Gallon tank, you'd need 20.4 oz of the Lucas Octane booster to get there on a full tank.

    For reference, the large bottle of Lucas Octane booster is 15 oz. So you can also get the right mixture if you have about 11.7 gallons in the tank with the full bottle of Octane Booster.

  16. xot1

    xot1 Korea, Republic of 1000 Posts Club!

    1,323
    805
    118
    Location:
    Seoul
    Field tests do not back up these results.
    Torco or boostane produce much better results.

  17. Stinger-Performance

    Stinger-Performance United States Member

    38
    4
    8
    Location:
    Shawnee, KS
    Agreed, that stuff can make "race fuel" out of pump gas and it doesn't take nearly as much so it's a super concentrate compared to Lucas brand and the price is similar.

  18. Hapa88

    Hapa88 United States Member

    96
    27
    18
    I just posted a link of someone that did a full on test on the Lucas. Not sure what you mean by field tests don’t back up those results...

    Sure, Boostane and Torco may be “better” but the tests show you could get a few octane numbers with the right mix of Lucas, unless you have data to prove otherwise.

  19. CoconutRob

    CoconutRob United States Stinger Enthusiast

    531
    101
    43
    Why would octaine booster even be needed on map 2 with 93 octane fuel?

  20. xot1

    xot1 Korea, Republic of 1000 Posts Club!

    1,323
    805
    118
    Location:
    Seoul
    I am aware of this test.
    But when comparing ignition timings and trap speed, Lucas performs as well as +2ish octane at best, while advertised +3.
