    Does anyone know where I could find a wiring diagram of the gt2? I want to run ambient lights to the backseats.

    • Like Like x 1
  2. AnyVare

    AnyVare United States Active Member

    206
    105
    43
    Curious, what do you plan on adding and where do you want to put them?

  3. ShannonC

    ShannonC Australia Active Member

    Was in the back of a BMW 7 series recently. Lighting under front seats was rather neat.

  4. Jays_stinger

    Jays_stinger United States Member

    52
    37
    18
    Location:
    Anaheim, CA
    I added interior under glow LEDs front and back seats. I connected them to the cluster fuse located on the fuse box under the steering wheel. Then just find a ground.

    The leds will turn on when you press the push to start button which activates the cluster this way.

    • Informative Informative x 1
  5. Audible Silence

    Audible Silence United States Active Member

    168
    17
    18
    Genius!

  6. Jays_stinger

    Jays_stinger United States Member

    52
    37
    18
    Location:
    Anaheim, CA
    This is driver and passenger area.


    Attached Files:

  7. elite360

    elite360 United States New Member

    4
    1
    3
    This is EXACTLY what I was looking for! New weekend project!

  8. Jays_stinger

    Jays_stinger United States Member

    52
    37
    18
    Location:
    Anaheim, CA
  9. elite360

    elite360 United States New Member

    4
    1
    3
    I just ordered it from amazon. Do you remember what fuse tap you used?

    Last edited: Nov 14, 2018
  10. Jays_stinger

    Jays_stinger United States Member

    52
    37
    18
    Location:
    Anaheim, CA
    The fuse adapters they give didint fit. I tapped into the cluster fuse. Wrapped positive wire around the fuse and put it back in its slot

  11. EBdiesel08

    EBdiesel08 United States Active Member

    103
    24
    18
    Can you post more pics please??!!

  12. Jays_stinger

    Jays_stinger United States Member

    52
    37
    18
    Location:
    Anaheim, CA

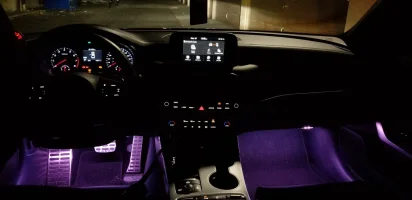

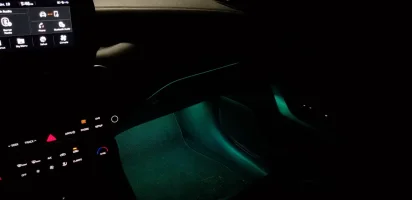

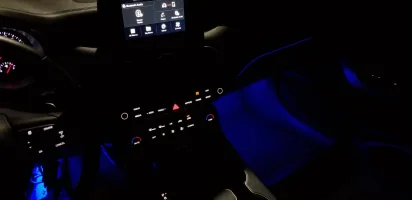

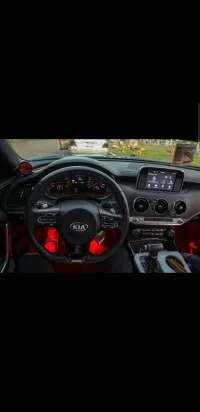

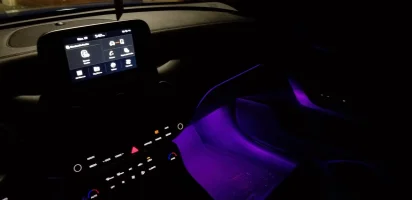

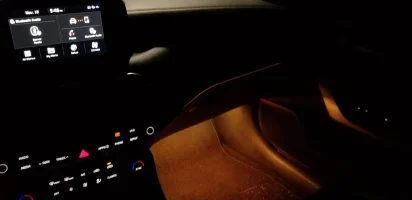

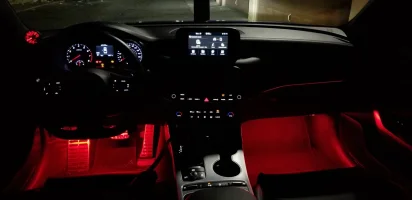

    Here you go. I took pics with every ambient light available. The kit I have matches them very well.


    Attached Files:

    • Like Like x 2
    • Winner Winner x 1
  13. Jays_stinger

    Jays_stinger United States Member

    52
    37
    18
    Location:
    Anaheim, CA
    I just added some.

  14. robz32

    robz32 United States 1000 Posts Club! Staff Member Moderator Texas Stinger Swarm

    1,525
    700
    118
    Location:
    Houston, TX
    That actually looks pretty good.

  15. EBdiesel08

    EBdiesel08 United States Active Member

    103
    24
    18
    Wow. Super nice! How’d you do it? Thank you for this post!

  16. Jays_stinger

    Jays_stinger United States Member

    52
    37
    18
    Location:
    Anaheim, CA
    Purchased the LED kit from Opt7. Link is above.
    Placed LEDs where I wanted them to be located and ran wires back to power box included in the kit.
    For power i connected the positive wire to the cluster fuse. Negative wire was connected to bolt behind fam pedal.

    That's pretty much it. LEDs will turn on when you press the push to start button.

  17. stingLikeAee

    stingLikeAee United States Member

    43
    8
    8
    Location:
    Omaha, NE
    I like it.

  18. EBdiesel08

    EBdiesel08 United States Active Member

    103
    24
    18
    Just purchased one.

  19. EBdiesel08

    EBdiesel08 United States Active Member

    103
    24
    18
    How’d you hide the wires? Any advice

  20. Kamauxx

    Kamauxx United States 2500 Posts Club!

    2,775
    1,119
    118
    Location:
    North Carolina
    How bright do you have it set in the pics?
